PUR HF WITH ANTITWISTING PROTECTION 1 KV HALOGEN-FREE LOW VOLTAGE POWER CABLES FOR MOBILE APPLICATIONS

Application:

Power supply to mobile equipment with high risk of mechanical damage in mining and tunneling. Maximum speed 120 m/min.

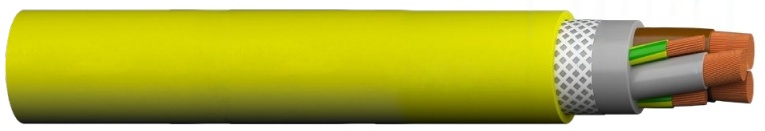

Structure:

1: Conductor Plain copper, flexible, class 5

2: Core insulation XLPE special compound Brown - Black - Grey

3: Core arrangement Phase cores laid up with earth cores in the interstices

4: Earth core Conductor: Plain copper, flexible, class 5

5: Control core optional with control cores

6: Inner sheath HFFR* thermoplastic polyurethane compound

7: Antitwisting Synthetic mesh

8: Outer sheath HFFR* thermoplastic polyurethane compound, abrasion, tear, oil & chemical resistant

STANDARDS / APPROVALS:

DIN EN 60228/ IEC 60228 / VDE 0295 Conductor

DIN VDE 0298-300 Core identification

IEC 60754-1 Halogen-free

DIN EN 60332-1-2 / IEC 60332-1-2 Fire performance

THERMAL PARAMETERS:

Max. conductor temperature 90 °C

Max. conductor temperature at short circuit 250 °C

Ambient temperature fix installation (min) -40 °C

Ambient temperature fix installation (max) 80 °C

Ambient temperature flexible installation (min) -30 °C

Ambient temperature flexible installation (max) 80 °C

CHEMICAL PARAMETERS:

Fire behaviour Yes

Flame retardant In accordance with EN/IEC 60332-1-2

Halogen free Yes

MECHANICAL PARAMETERS:

Travel speed 120 m/min

Bending radius (rule) Acc. to VDE 0298-3:

6 x D fixed installation

10 x D on drums

ELECTRICAL PARAMETERS:

Rated voltage U0/U (Um) 0.6/1 (1.2) kV

Max. operating voltage Um 1.2 kV

Test voltage 3.5 kV

What Applications Are PUR HF Antitwisting 1 kV Cables Designed For?

PUR HF antitwisting power cables are purpose-built for mobile equipment operating under continuous movement and mechanical stress, particularly where twisting forces can damage conventional flexible cables.

Typical Applications Include:

Underground mining equipment
Tunnelling machines and roadheaders
Mobile crushers and conveyors
Drilling rigs and LHD (Load–Haul–Dump) machines
Equipment on cable reels and drums
Mobile substations in harsh environments

With a maximum travel speed of 120 m/min, these cables are suitable for dynamic reeling and trailing operations, where cable rotation and torsional fatigue are major failure risks.

How Does This Cable Perform Mechanically?

Mechanical Performance Highlights:

Maximum travel speed: 120 m/min
High tensile strength (up to 14,400 N depending on size)
Bending radius:
- Fixed installation: 6 × D
- Drum/reeling operation: 10 × D

This makes the cable ideal for frequent movement without conductor fatigue.

How Do Different PUR HF Antitwisting Cable Models Compare?

Standard Power Versions (Without Control Cores)

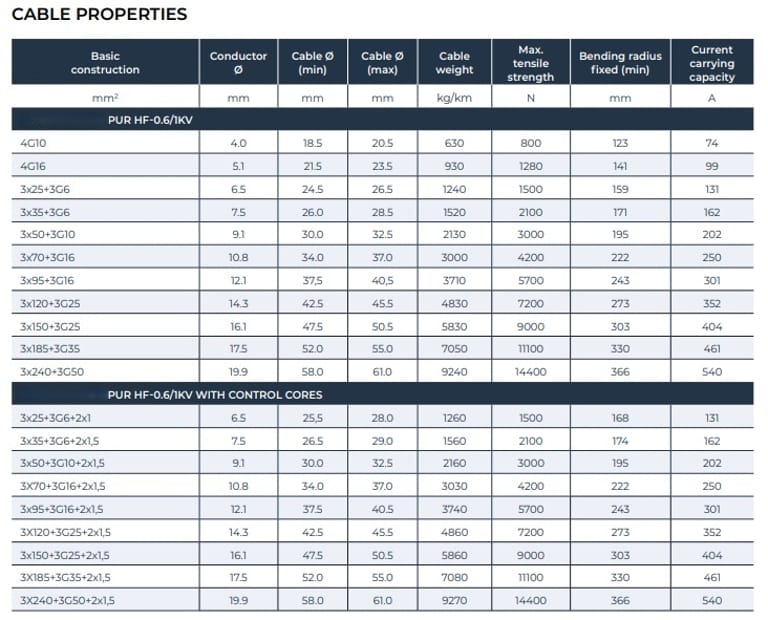

Cable Size	Cable Ø (max) mm	Weight kg/km	Max Tensile (N)	Current (A)
4G10	20.5	630	800	74
3×50 + 3G10	32.5	2130	3000	202
3×120 + 3G25	45.5	4830	7200	352
3×240 + 3G50	61.0	9240	14400	540

Versions With Control Cores

Cable Size	Control Cores	Weight kg/km	Current (A)
3×25 + 3G6 + 2×1	Yes	1260	131
3×95 + 3G16 + 2×1.5	Yes	3740	301
3×240 + 3G50 + 2×1.5	Yes	9270	540

How Does This Cable Compare to Standard Flexible Mining Cables?

Feature	PUR HF Antitwisting	Standard Rubber Cable
Antitwisting protection	✔	✖
Halogen-free	✔	Often ✖
Abrasion resistance	Excellent	Moderate
Fire safety	High	Medium
Service life on reels	Long	Shorter
Chemical resistance	Excellent	Limited

What Are the Best Installation Practices?

How Should PUR HF Antitwisting Cables Be Installed?

Respect minimum bending radius (especially on drums)
Avoid forced twisting during installation
Use compatible cable reels with smooth guidance
Ensure adequate strain relief at termination points
Regularly inspect outer sheath for abrasion

Correct installation maximises service life and safety performance.

Frequently Asked Questions (FAQ)

Is this cable suitable for continuous reeling?

Yes. It is specifically designed for dynamic reeling and trailing applications up to 120 m/min.

Can it be used in underground mining?

Absolutely. Its halogen-free, flame-retardant PUR sheath makes it ideal for underground and confined spaces.

Does the antitwisting layer replace steel reinforcement?

No. The synthetic mesh is designed for torsional stability, not tensile reinforcement like steel braiding.

Is it compliant with international standards?

Yes. It complies with IEC, DIN EN, and VDE standards, making it suitable for global mining projects.

How Do You Choose the Right PUR HF Antitwisting Cable?

Ask yourself:

Is the cable subjected to torsional stress?
Is fire safety a critical requirement?
Will the cable be used on drums or moving equipment?
Do you need integrated control cores?

If the answer to these questions is “yes,” this cable is a strong candidate.
