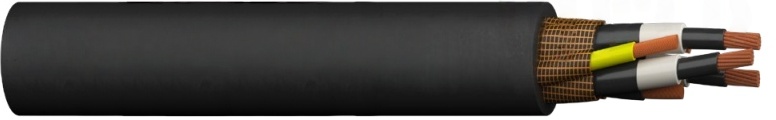

(N)TSCGEWOEU I 6 - 20 KV

Applications:

As power supply or connection cables for large material handling machines, e.g. excavators in opencast mines subject to extremely high mechanical stresses in which abrasion and chaffing stresses are to be expected in trailing operation.

Structure:

1. Conductor Finely stranded copper, tinned, class 5 PE: Very finely stranded copper, tinned, class FS with semi conductive special rubber compound

2. Inner semi-conducting layer Semi-conductive EPR

3. Core insulation EPR rubber Special compound 3GI3

4. Core arrangement Three-core design, with split earth conductor in the interstices. Tear- resistant reinforcing tape over assembly

5. Outer semi-conducting layer Semi-conductive NBR easy strip

6. Split Earth Conductor

7. Armoring / reinforcement Braiding Material - Polyester

8. Inner sheat Rubber - polychloroprene (PCP) Special compound 5GM5

9. Outer sheath Rubber polychloroprene (PCP), Special compound > 5GM5

STANDARDS / APPROVALS:

DIN VDE 0250-813 General

EN 50525-2-21 Electrical parameters

DIN VDE 0298-3 Mechanical parameters

GOST -R/-K/-B Fire Certificate Certifications / Approvals

of Russian Federation

DIN EN 60332-1-2 / IEC 60332-1-2 Fire performance IEC 60811-404 Chemical behaviour

THERMAL PARAMETERS:

Max. conductor temperature 90 °C

Max. conductor temperature at short circuit 250 °C

Ambient temperature fix installation (min) -40 °C

Ambient temperature fix installation (max) 80 °C

Ambient temperature flexible installation (min) -30 °C

Ambient temperature flexible installation (max) 60 °C

CHEMICAL PARAMETERS:

Flame retardant In accordance with EN/IEC 60332-1-2

Oil resistant Yes

Ozone resistance Yes

Resistant to UV Yes

MECHANICAL PARAMETERS:

Torsional stress +/- 100 °/m

Permanent tensile strength (rule) 20 N/mm² static

Bending radius (rule)

Acc. to VDE 0298-3: 6 x D fixed installation

10 x D flexible operation

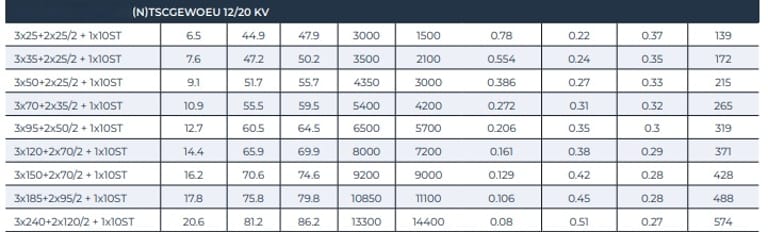

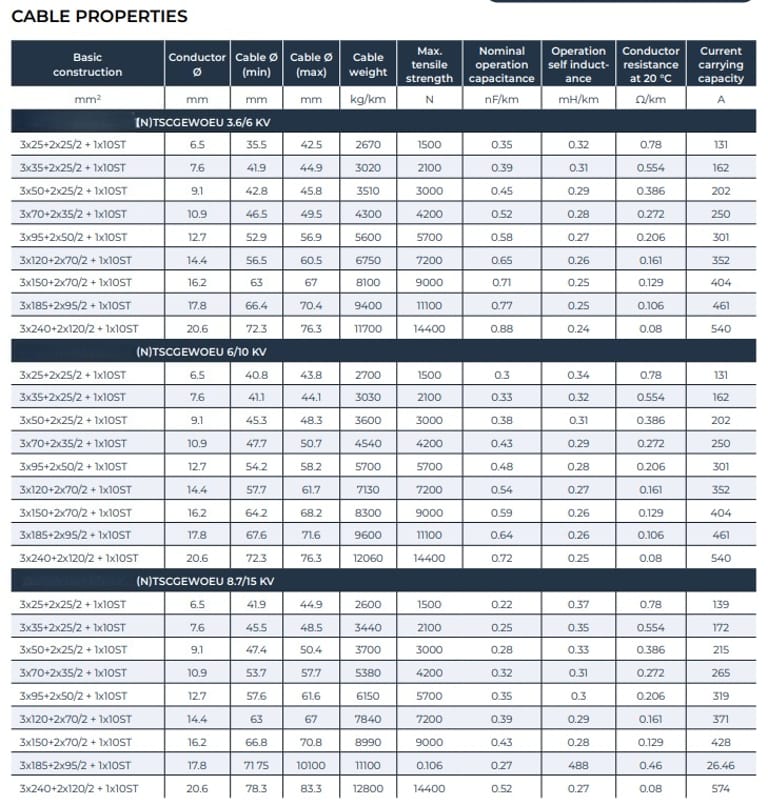

ELECTRICAL PARAMETERS:

Rated voltageU0/U (Um) 3.6/6 (7.2) kV 6/10 (12)kV 12/20 (24)kV

Test voltage 11 kV 17 kV 29 kV

Nominal voltage U 6,000 V 10,000 V 20,000 V

Feichun DIN VDE (N)TSCGEWOEU 6 - 20 kV medium voltage flexible trailing cables are crucial components in the power supply of large material handling machines, particularly in mining operations. These cables are designed to withstand high mechanical stresses, ensuring uninterrupted power delivery to equipment like excavators and other heavy machinery in challenging environments. With optimized wall thickness, these cables are built for maximum durability, reliability, and safety.

What Are the Common Applications of Feichun DIN VDE (N)TSCGEWOEU Cables?

These cables are primarily used in the power supply of equipment that requires flexible and reliable electrical connections in heavy-duty, high-stress environments. Some common applications include:

1. Mining Industry

Excavators and Loaders: Powering large excavation machines that face extreme physical stress, such as abrasion and chaffing, during operation in open-pit mines.
Material Handling Machines: Used in cranes, conveyors, and other mining machinery where flexibility and durability are key.

2. Industrial Automation

Port Machinery: Suitable for large material handling machinery used in port operations, where both mechanical stress and exposure to elements are prevalent.

3. Power Transmission in Harsh Environments

Offshore and Onshore Projects: These cables can withstand harsh environmental conditions, making them perfect for offshore oil rigs and other installations exposed to saltwater and UV radiation.

How Does the Optimized Wall Thickness Improve Durability?

Feichun DIN VDE (N)TSCGEWOEU cables are equipped with an optimized wall thickness to enhance their durability. This feature provides:

Increased Protection Against Mechanical Stress: The thicker walls offer added resistance to wear and tear from external mechanical forces, which is essential in mining environments where abrasion and friction are common.
Better Thermal Performance: The optimized wall thickness improves the thermal performance of the cable, ensuring it can handle higher current loads and heat generation without degrading the insulation.
Enhanced Safety: By providing a robust barrier against external environmental factors, these cables offer improved safety for both the equipment and personnel working with it.

How Do Feichun DIN VDE (N)TSCGEWOEU Cables Compare to Other Medium Voltage Cables?

When comparing Feichun DIN VDE (N)TSCGEWOEU cables to other medium-voltage cables, there are several key differentiators that stand out:

Feature	Feichun DIN VDE (N)TSCGEWOEU	Standard Medium Voltage Cable
Voltage Range	6/10 (12) kV, 12/20 (24) kV	6/10 kV
Outer Sheath Material	Polychloroprene (PCP)	PVC or rubber
Oil and UV Resistance	Yes	Varies
Flexibility	High, for dynamic applications	Often lower flexibility
Mechanical Stress Resistance	High, optimized wall thickness	Standard protection

What Are the Installation Recommendations?

To ensure that Feichun DIN VDE (N)TSCGEWOEU cables perform optimally, proper installation is crucial. Here are some recommendations:

Bending Radius: Follow the guidelines for bending radius to avoid damage to the insulation and conductor. Fixed Installation: 6 x D Flexible Operation: 10 x D
Torsional Stress: Minimize excessive twisting to prevent damage to the core and insulation.
Secure Mounting: Use appropriate support and ensure the cable is not exposed to unnecessary tension or sharp bends.
Temperature Management: Ensure the cable is not exposed to temperatures outside the recommended range, especially during flexible operation.

FAQs About Feichun DIN VDE (N)TSCGEWOEU Cables

1. What are the key benefits of using Feichun DIN VDE (N)TSCGEWOEU cables in mining applications?

These cables are designed to withstand high mechanical stress, abrasion, and harsh environmental conditions, making them ideal for use in the mining industry. Their optimized wall thickness increases durability, ensuring long-lasting performance even under extreme conditions.

2. Can Feichun DIN VDE (N)TSCGEWOEU cables be used for applications outside of mining?

Yes, they are versatile and can be used in various industries, including offshore oil rigs, port machinery, and heavy-duty industrial automation where high flexibility, mechanical stress resistance, and durability are required.

3. How do I choose the right size of cable for my project?

The choice of cable size depends on the specific voltage, current requirements, and environmental conditions of your application. For detailed recommendations, consult with the manufacturer or a certified electrical engineer.

4. What are the safety precautions when handling these cables?

Always ensure the cables are installed following proper safety protocols, including correct bending radius, temperature range, and protection against mechanical stress. Use certified installation equipment and ensure the cables are not exposed to extreme mechanical damage.

Why Choose Feichun DIN VDE (N)TSCGEWOEU Cables?

Feichun DIN VDE (N)TSCGEWOEU 6 - 20 kV cables are an excellent choice for heavy-duty applications, offering robust protection against environmental stressors like abrasion, heat, and mechanical damage. Their optimized design, combined with high flexibility, makes them ideal for mining operations and other industrial uses. By choosing Feichun cables, you're investing in safety, durability, and reliability for your most demanding projects.
