(N)TSCGEWOEU 6 - 35 KV MEDIUM VOLTAGE FLEXIBLE CABLES FOR SEMI-FLEXIBLE INSTALLATION

Feichun (N)TSCGEWOEU 6 - 35 KV MEDIUM VOLTAGE FLEXIBLE CABLES FOR SEMI-FLEXIBLE INSTALLATION

Application:

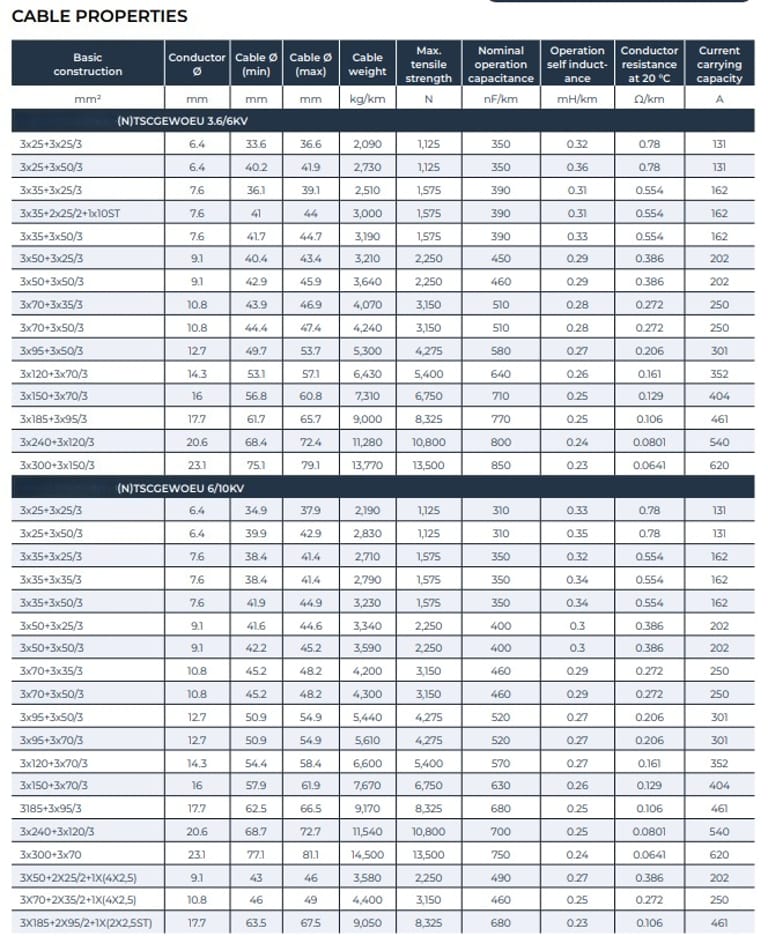

For laying alongside the conveyor belts (also for shiftable units) and on material handling equipment (even CABLE PROPERTIES with continuous movement such as in cable booms or as connection between upper and lower car) and for connection of submersible pump units.

Structure:

1. Conductor Finely stranded copper, bare, class 5

2. Inner semi-conducting layer Semi-conductive EPR

3. Core insulation EPR rubber Special compound 3GI3

4. Core arrangement Three main conductors laid-up, with protectiveearth conductor split into 3 in the outer interstices

5. Earth Conductors

6. Outer semi-conducting layer Semi-conductive NBR easy strip

7. Optical fiber element

8. Inner sheat Rubber Special EPR compound GM1b

9. Outer sheath Chlorinated polyethylene (CM/CPE) Special compound 5GM3

STANDARDS / APPROVALS:

DIN VDE 0250-813 General

DIN VDE 0298-4 Electrical parameters

DIN EN 60811-404 / IEC 60811-404 Chemical behaviour

DIN EN 50525-2-21 Chemical behaviour

GOST -R/-K/-B Fire Certificate of Certifications / Approvals

Russian Federation

DIN EN 60332-1-2 / IEC 60332-1-2 Fire performance

THERMAL PARAMETERS:

Max. conductor temperature 90 °C

Max. conductor temperature at short circuit 250 °C

Ambient temperature fix installation (min) -40 °C

Ambient temperature fix installation (max) 80 °C

Ambient temperature flexible installation (min) -25 °C

Ambient temperature flexible installation (max) 60 °C

CHEMICAL PARAMETERS:

FFlame retardant In accordance with EN/IEC 60332-1-2

Oil resistant Yes

Ozone resistance Yes

Resistant to UV Yes

Sea water resistance Excellent Max. water depth 10 m

MECHANICAL PARAMETERS:

Torsional stress +/- 100 °/m

Permanent tensile strength (rule) 15 N/mm²

Bending radius (rule) Acc. to VDE 0298-3:

6 x D fixed installation

10 x D flexible operation ELECTRICAL PARAMETERS: Rated voltage U0/U (Um) in kV 3.6/6 (7.2) 6/10 (12) 8.7/15 (17.5) 12/20 (24) 14/25 (29) 18/30 (36) 20/35 (42) Test voltage 11 kV 17 kV 24 kV 29 kV 36 kV 43 kV 50 kV

Nominal voltage U 6,000 V 10,000 V 15,000 V 20,000 V 25,000 V 30,000 V 35,000 V

Medium-voltage flexible cables are critical components in modern mining, bulk material handling, and heavy industrial systems. Among them, Feichun (N)TSCGEWOEU 6–35 kV medium voltage flexible cables for semi-flexible installation are designed for demanding environments where electrical performance, mechanical durability, and operational safety must coexist.

What Standards and Certifications Does the (N)TSCGEWOEU Cable Meet?

The cable complies with internationally recognized standards:

DIN VDE 0250-813 – Medium-voltage flexible cables
DIN VDE 0298-4 – Electrical parameters
DIN EN / IEC 60811-404 – Chemical and mechanical testing
DIN EN 50525-2-21 – Material behavior
DIN EN / IEC 60332-1-2 – Flame retardancy
GOST Fire Certificate – Russian Federation approval

This compliance makes the cable suitable for export-oriented mining and industrial projects, including those in Africa.

What Are the Key Electrical and Thermal Performance Parameters?

What Voltage Range Is Available?

The (N)TSCGEWOEU series covers:

3.6/6 kV up to 20/35 kV
Nominal voltages from 6 kV to 35 kV

What Are the Thermal Limits?

Max conductor temperature (normal): 90 °C
Short-circuit temperature: 250 °C
Fixed installation: -40 °C to +80 °C
Flexible installation: -25 °C to +60 °C

These limits ensure reliability in both cold and hot mining regions.

How Does the (N)TSCGEWOEU Cable Perform Mechanically?

Is the Cable Resistant to Torsion and Tension?

Yes:

Torsional stress: ±100°/m
Permanent tensile strength: 15 N/mm²

What Is the Minimum Bending Radius?

According to VDE 0298-3:

6 × D (fixed installation)
10 × D (flexible operation)

This makes the cable suitable for installations with moderate movement and alignment changes.

Which Applications Are Best Suited for (N)TSCGEWOEU Cables?

Where Is This Cable Typically Installed?

Along conveyor belts, including shiftable systems
Material handling equipment
Cable booms and vertical connections between machine levels
Submersible pump units (up to 10 m water depth)

Why Is Semi-Flexible Installation Ideal Here?

These applications involve:

Occasional movement
Vibration
Mechanical stress
But do not require continuous reeling, making (N)TSCGEWOEU a cost-effective and durable choice.

How Does (N)TSCGEWOEU Compare with Other Medium-Voltage Flexible Cables?

Comparison Table

Feature	(N)TSCGEWOEU	Standard MV PVC Cable	Fully Reeling MV Cable
Voltage range	6–35 kV	Up to 15 kV	Up to 36 kV
Insulation	EPR	PVC	EPR
Flexibility	Semi-flexible	Limited	High
Oil resistance	Excellent	Moderate	Excellent
Continuous reeling	No	No	Yes
Cost efficiency	High	Medium	Lower

What Installation Recommendations Should Be Followed?

Avoid exceeding minimum bending radius
Ensure proper earthing of split earth conductors
Use compatible MV terminations for EPR insulation
For outdoor routes, avoid sharp edges and excessive tensile loads
When optical fiber is included, respect fiber handling limits

Correct installation significantly extends cable service life.

Frequently Asked Questions (FAQ)

Is (N)TSCGEWOEU suitable for continuous reeling?

No. It is designed for semi-flexible applications, not continuous drum reeling.

Can this cable be used in wet environments?

Yes. It offers excellent seawater resistance up to 10 m depth.

Why choose EPR insulation instead of XLPE?

EPR provides superior flexibility, thermal stability, and resistance to cracking under movement.

Is this cable suitable for South African standards?

While based on DIN VDE, it is widely accepted in South African mining projects when specified for MV flexible applications.

Why Choose Feichun (N)TSCGEWOEU for Your Medium-Voltage Project?

Feichun (N)TSCGEWOEU cables combine:

Proven DIN VDE engineering
Robust EPR insulation systems
Strong performance in African mining conditions
Flexible design options from 6 kV to 35 kV

They are a reliable, cost-effective solution for medium-voltage power transmission where durability and safety matter.

How Can You Select the Right (N)TSCGEWOEU Cable Configuration?

Choosing the correct voltage class, conductor size, and sheath option is critical.
Contact Feichun’s technical team to receive:

Application-specific cable selection
Datasheets and drawings
Support for mining and industrial projects in South Africa and beyond
