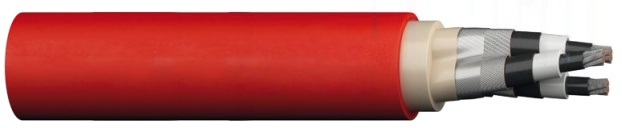

NTSCGEWOEU 3 - 30 KV MEDIUM VOLTAGE FLEXIBLE CABLES FOR USE IN WATER WITH COPPER CORE SHIELD
Feichun NTSCGEWOEU 3 - 30 KV MEDIUM VOLTAGE FLEXIBLE CABLES FOR USE IN WATER WITH COPPER CORE SHIELD
Applications:
Power supply cable for use in water, e.g. for connection to dredgers, floating docks, pumps, etc., in CABLE PROPERTIES applications where high mechanical stresses are to be expected. Also suitable for use in sewage, salt water and brackish water at water depths of up to 500 m. This screened cable design is suitable for the use with dredging equipment acc. VDE 0168.
Structure:
1. Conductor Finely stranded copper, tinned, class 5 PE: individual concentric conductors distributed over the insulation of the three main cores.
2. Inner semi-conducting layer Semi-conductive EPR
3. Core insulation EPR rubber Special compound 3GI3
4. Outer semi-conducting layer Semi-conductive EPR
5. Protective Earth Conductor
6. Core arrangement Three main conductor laid-up with individual concentric protective-earth conductor
7. Inner sheath Special EPR compound waterproof
8. Outer sheath Chlorinated polyethylene (CM/CPE) Special compound 5GM3 waterproof
STANDARDS / APPROVALS:
DIN VDE 0250-813 General
DIN VDE 0298-4 Electrical parameters
MSHA P-189-4 Certifications / Approvals
DIN EN 60811-404 / IEC 60811-404 Chemical behaviour
DIN EN 50525-2-21 Chemical behaviour
GOST -R/-K/-B Fire Certificate of Certifications / Approvals
Russian Federation
DIN EN 60332-1-2 / IEC 60332-1-2 Fire performance
THERMAL PARAMETERS:
Max. conductor temperature 90 °C
Max. conductor temperature at short circuit 250 °C
Ambient temperature fix installation (min) -40 °C
Ambient temperature fix installation (max) 80 °C
Ambient temperature flexible installation (min) -25 °C
Ambient temperature flexible installation (max) 60 °C
CHEMICAL PARAMETERS:
Flame retardant In accordance with EN/IEC 60332-1-2
Oil resistant Yes
Ozone resistance Yes
Resistant to UV Yes
Sea water resistance Excellent Max. water depth 500 m
MECHANICAL PARAMETERS:
Torsional stress +/- 25 °/m
Permanent tensile strength (rule) 15 N/mm²
Bending radius (rule)
Acc. to VDE 0298-3: 6 x D fixed installation
10 x D flexible operation

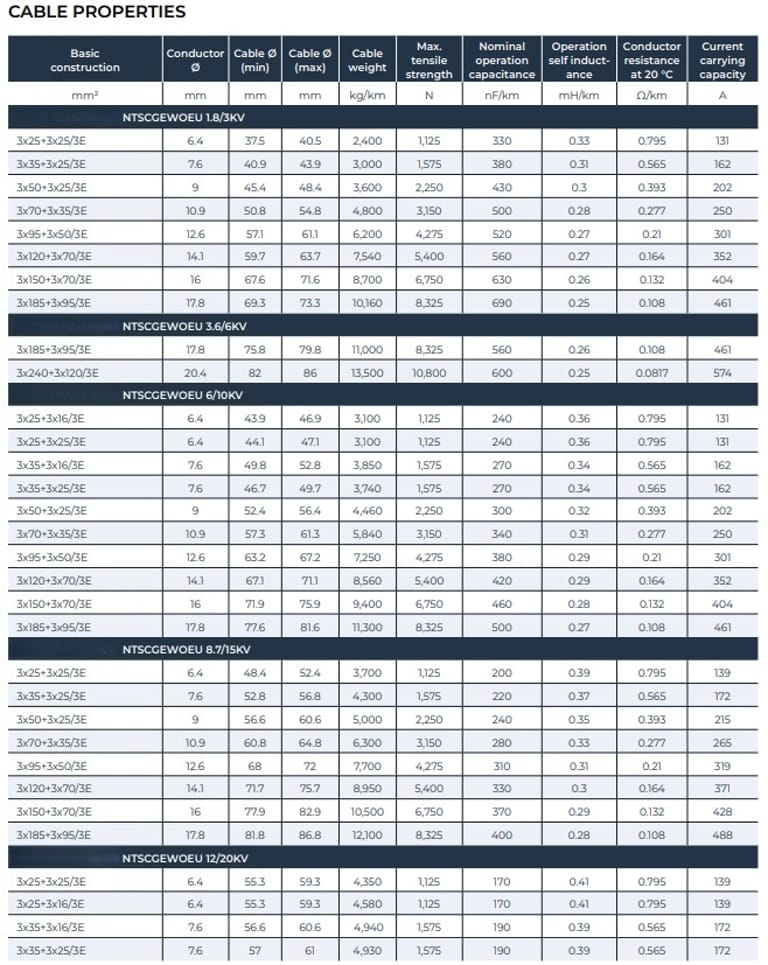

ELECTRICAL PARAMETERS:
Rated voltage U0/U (Um) in kV 1.8/3 (3,6) 3.6/6 (7.2) 6/10 (12) 8.7/15 (17.5) 12/20 (24) 14/25 (29) 18/30 (36)
Test voltage 6 kV 11 kV 17 kV 24 kV 29 kV 36 kV 43 kV
Nominal voltage U 3,000 V 6,000 V 10,000 V 15,000 V 20,000 V 25,000 V 30,000 V
What Makes Feichun NTSCGEWOEU Cables Ideal for Use in Water?
Feichun NTSCGEWOEU cables stand out due to their unique construction and ability to withstand the harsh conditions found in water-based applications. These cables are engineered for use in water depths of up to 500 meters, including sewage, saltwater, and brackish water. They are specifically designed to handle mechanical stresses encountered in dynamic and submerged conditions, such as those seen with dredging equipment.
Structure of Feichun NTSCGEWOEU Cable:
Conductor: The finely stranded copper, tinned conductor, class 5, is ideal for high flexibility and electrical performance. It is complemented by individual concentric conductors distributed over the insulation of the three main cores.
Core Insulation: The core insulation is made from EPR rubber, a special compound (3GI3), which provides excellent electrical properties and resistance to environmental elements.
Outer Sheath: The outer sheath is made from chlorinated polyethylene (CM/CPE), a special compound that ensures water resistance, durability, and protection against environmental factors.
Shielding: The cable is equipped with a copper core shield, enhancing its performance by minimizing electrical interference and ensuring a robust power supply.
What Are the Key Applications of Feichun NTSCGEWOEU Cables?
Feichun NTSCGEWOEU cables are versatile and robust, making them suitable for a wide range of applications. These include:
Dredging Equipment: Essential for powering dredgers and other marine equipment, where high mechanical stress is expected.
Floating Docks and Pumps: Perfect for use in floating docks, water pumps, and other offshore systems that require flexible and reliable power cables.
Marine and Underwater Operations: The cables are specifically designed for use in saltwater and brackish water, making them ideal for underwater cable installations.
Sewage and Water Treatment Plants: With their high resistance to oils, ozone, and seawater, these cables are also suitable for sewage treatment facilities.
How Do Feichun NTSCGEWOEU Cables Compare with Other Medium Voltage Cables?
When compared to other medium voltage cables designed for similar applications, Feichun NTSCGEWOEU cables offer several advantages:
Feature | Feichun NTSCGEWOEU | Standard Medium Voltage Cables |
|---|---|---|
Voltage Rating | 3-30 kV | Typically 3-20 kV |
Water Resistance | Excellent (up to 500m depth) | Moderate (up to 100m depth) |
Mechanical Stress Resistance | High (for dredging equipment) | Moderate |
Flexibility | High (for dynamic use) | Moderate |
Chemical Resistance | Oil, Ozone, UV, Sea Water | Varies (typically less resistant) |
Standards Compliance | VDE 0250-813, MSHA, IEC | Varies |
Feichun NTSCGEWOEU cables not only have superior mechanical properties but also comply with global standards, ensuring optimal performance in underwater or harsh environments.
How Durable Are Feichun NTSCGEWOEU Cables in Extreme Conditions?
Feichun NTSCGEWOEU cables are built for extreme conditions, ensuring their longevity and reliable performance even in submerged and challenging environments.
Temperature Range: These cables can withstand a wide temperature range. The fixed installation temperature is from -40°C to +80°C, while flexible installation can operate between -25°C and +60°C.
Chemical and Mechanical Resistance: The cables are resistant to oils, UV, ozone, and sea water, making them ideal for offshore and underwater applications. Additionally, they can handle significant mechanical stress with a torsional stress tolerance of 25°/m and a permanent tensile strength of 15 N/mm².
Flame Retardancy: In accordance with IEC 60332-1-2, these cables are flame-retardant, ensuring safety in case of fire.
What Are the Key Benefits of Using Feichun NTSCGEWOEU Cables for Water-Based Applications?
Enhanced Durability: With a robust structure, these cables are designed to last in the toughest conditions, from extreme underwater environments to high mechanical stress areas.
Compliance with Global Standards: Feichun NTSCGEWOEU cables comply with various international standards, including MSHA, IEC, and VDE, ensuring their reliability and safety.
High Flexibility: The finely stranded copper conductor and robust insulation make these cables highly flexible, suitable for dynamic use in aquatic environments.
Efficient Energy Transmission: With excellent electrical parameters and low resistance, these cables ensure minimal energy loss, even over long distances.
What Are the Installation Considerations for Feichun NTSCGEWOEU Cables?
When installing Feichun NTSCGEWOEU cables, certain best practices should be followed to ensure optimal performance and safety:
Bending Radius: Follow the VDE 0298-3 guideline for bending radii – 6x D for fixed installations and 10x D for flexible operations.
Tensile Strength: Ensure the maximum tensile strength (15 N/mm²) is not exceeded during installation.
Environment: These cables are designed for submerged and underwater use, so it is essential to ensure proper sealing and waterproofing during installation.
