(N)TSCGECEWÖU 8.7/15kV & 12/20kV Submersible Cable Flexible High-Voltage Rubber Cable for Pumps, Dredges & Mining Applications
Application | Flexible supply cable for permanent immersion in salty and brackish water up to 300 m. Suitable for pumps, dredges, floating docks, trailing operations of opencast mining equipment, indoor and outdoor use. |
Voltage Rating (Uo/U) | 8.7/15 kV, 12/20 kV |
Test Voltage | 8.7/15 kV: 24 kV 12/20 kV: 29 kV |
Ambient Temperature | Fixed: -40°C to +80°C Flexed: -25°C to +60°C |
Minimum Bending Radius | Fixed: 6 × overall diameter Flexed: 10 × overall diameter |
Submersible Depth | 300 m |
Standards | VDE 0250 Part 813, VDE 0295, EN 60228 Flame retardant IEC/EN 60332-1-2 |
Conductor | Class 5 tinned copper conductor |
Insulation | Rubber compound |
Semi-Conductive Layers | Semi-conductive tape over conductor and inner/outer semi-conductive rubber layer on insulation |
Protective Earth Conductor | Individual copper wire braid |
Central Filler | Rubber compound on textile polyester support |
Inner Sheath | EPR rubber compound with waterproofing |
Outer Sheath | CM rubber compound with waterproofing |
Sheath Colour | Black |

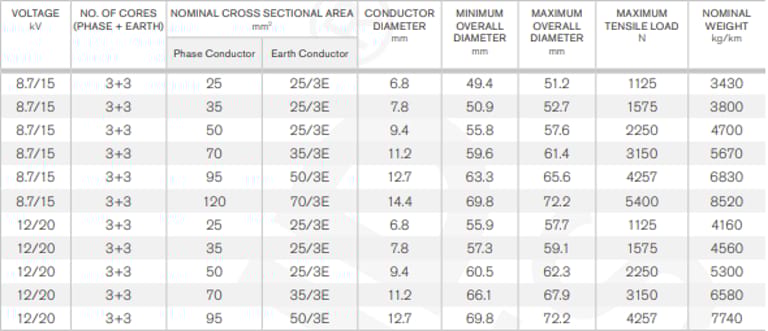

DIMENSIONS
Submersible high-voltage cables are critical components in industries where water, mechanical stress, and flexible operation are daily challenges. Among them, the (N)TSCGECEWÖU 8.7/15kV and 12/20kV submersible cables stand out for their durability, flexibility, and suitability for harsh environments such as pumps, dredges, floating docks, and open-cast mining equipment.
What Are the Key Features of (N)TSCGECEWÖU Submersible Cable?
The (N)TSCGECEWÖU series is designed to provide flexible high-voltage connections under water, including saline and brackish environments, up to depths of 300 meters. Key characteristics include:
Voltage Ratings: 8.7/15kV and 12/20kV
Test Voltages: 24kV for 8.7/15kV, 29kV for 12/20kV
Ambient Temperature:
Fixed: -40°C to +80°C
Flexed: -25°C to +60°C
Minimum Bending Radius:
Fixed: 6 × overall diameter
Flexed: 10 × overall diameter
Submersibility: Permanent immersion up to 300m
These features make it ideal for trailing operations in open-cast mining, as well as submerged pump and dredge installations, where mechanical stress, bending, and water exposure are constant factors.
In Which Industries and Applications Is the (N)TSCGECEWÖU Cable Used?
The versatility of the (N)TSCGECEWÖU cable makes it suitable for:
Submersible Pumps: For irrigation, municipal water, and industrial pumping stations.
Dredging Equipment: High flexibility allows trailing operations for excavation in rivers, ports, and offshore.
Mining Equipment: Trailing high-voltage supply to excavators, conveyors, and mobile equipment.
Floating Docks & Marine Installations: Resistant to saline water immersion, UV, and mechanical stress.
Case – Indonesia:
In the Sumatra tin mining project, 12/20kV (N)TSCGECEWÖU cables were installed on trailing mining excavators in brackish water conditions. Operators reported reduced downtime due to cable failure and improved safety due to the tinned copper conductors resisting corrosion.
How Do (N)TSCGECEWÖU Cables Compare With Other Submersible Cables?
Feature | (N)TSCGECEWÖU | Standard Rubber Cable | XLPE Submersible Cable |
|---|---|---|---|
Flexibility | Very High | Medium | Low |
Max Submersion Depth | 300 m | 100–150 m | 200 m |
Mechanical Resistance | High | Medium | High |
Temperature Range | -40°C to +80°C | -20°C to +60°C | -30°C to +70°C |
Ideal For | Pumps, Dredges, Mining | Pumps, short-term immersion | Pumps, mining (limited trailing) |
This table shows that (N)TSCGECEWÖU is uniquely suited for long-term, high-stress submersible operations, outperforming standard rubber or XLPE cables in flexibility, depth, and mechanical resistance.
Frequently Asked Questions (FAQ)
Can (N)TSCGECEWÖU Cables Be Used in Saltwater Environments?
Yes. The tinned copper conductors and CM rubber outer sheath make the cable resistant to corrosion from saltwater, allowing permanent immersion up to 300 meters.
What Is the Maximum Load Current for 50mm² Cable?
For 50mm², the current capacity is 216A when laid on the floor and 173A when reeled, assuming ambient temperature of 30°C.
How Does (N)TSCGECEWÖU Compare With XLPE Submersible Cables?
While XLPE offers good electrical insulation, it is less flexible, making it harder to handle in trailing or dredging operations. (N)TSCGECEWÖU offers higher flexibility, better mechanical stress resistance, and longer immersion capability.
What Are the Typical Failures and How to Prevent Them?
Common failures include abrasion, bending fatigue, and water ingress at terminations. Prevention involves proper bending radius, protective guides, and high-quality waterproof terminations.
Is This Cable Suitable for Trailing Mining Equipment?
Absolutely. The flexible construction, high tensile load, and submersibility make it ideal for trailing conveyors, mobile excavators, and dredges in mining environments.
Why Choose (N)TSCGECEWÖU for Industrial Projects in Indonesia?
Durable under high mechanical stress: Ideal for dredges and mining.
Long-term submersion capability: Suitable for rivers, docks, and offshore.
Flexibility for trailing applications: Reduces operational downtime.
Compliance with VDE & IEC standards: Ensures safety and regulatory adherence.
Proven in real Indonesian mining projects: Reliable performance in challenging environments.
Contact your supplier today to get tailored recommendations for your dredging, mining, or pumping project, and ensure optimal performance with (N)TSCGECEWÖU cables.
