(N)SHÖU O/J 0.6/1kV Flexible Rubber Mining Cable Flame Retardant, Oil & Abrasion Resistant for Industrial & Submersible Equipment
Cable Information
Cable Type | Voltage Rating | Application | Standards |
|---|---|---|---|
(N)SHÖU O/J - 0.6/1kV | 0.6/1kV | Flexible rubber-sheathed cable suitable for mining applications alongside conveyor belts, energy supply to equipment in movement, industrial apparatus, and submersed pumps. Resistant to abrasion, oils, flame retardant. Suitable for indoor and outdoor applications. | VDE 0250 Part 812, VDE 0295, EN 60228, Flame Retardant IEC/EN 60332-1-2 |
Construction & Characteristics
Parameter | Specification |
|---|---|
Phase Conductor | Class 5 flexible copper |
Insulation | Rubber compound |
Inner Sheath | Rubber compound |
Outer Sheath | Heavy duty rubber compound |
Sheath Colour | Black |
Test Voltage | 3 kV |
Ambient Temperature | Fixed: -40°C to +80°C Flexed: -25°C to +80°C |
Maximum Short Circuit Temperature | +250°C |
Minimum Bending Radius | Fixed: 4 × overall diameter Flexed: 5 × overall diameter |

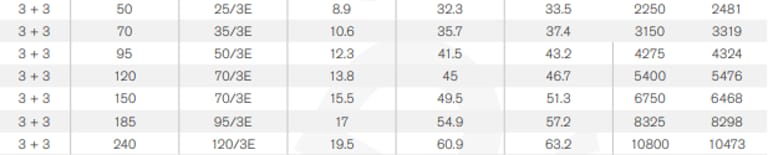

DIMENSIONS
Mining and industrial operations demand cables that combine flexibility, durability, and safety. The (N)SHÖU O/J 0.6/1kV flexible rubber mining cable has emerged as a top choice for operators in Indonesia and worldwide, offering flame retardancy, oil and abrasion resistance, and suitability for both industrial and submersible equipment. But what makes this cable unique, and how does it compare to other flexible rubber cables?
What Is the (N)SHÖU O/J 0.6/1kV Mining Cable?
The (N)SHÖU O/J cable is a flexible, rubber-sheathed cable designed for harsh environments where mobility, abrasion resistance, and safety are essential. It is primarily used for:
Powering mobile industrial machinery
Energy supply alongside conveyor belts
Submersible pumps in wet or damp conditions
Indoor and outdoor heavy-duty applications
Its voltage rating of 0.6/1kV makes it ideal for low-voltage industrial operations, while its flame retardant and oil-resistant rubber sheathing ensures long-term durability in mining and industrial conditions.
What Is the Construction of the (N)SHÖU O/J Mining Cable?
Understanding the construction helps explain the cable’s mechanical and electrical performance:
Component | Material / Description |
|---|---|
Phase Conductor | Class 5 flexible copper |
Insulation | Rubber compound |
Inner Sheath | Rubber compound |
Outer Sheath | Heavy-duty rubber compound, black color |
Standards | VDE 0250 Part 812, VDE 0295, EN 60228 |
Flame Retardancy | IEC/EN 60332-1-2 |
Highlights:
Flexible Class 5 copper strands allow easy bending without damaging conductors.
Heavy-duty rubber sheath resists mechanical wear, oil, and environmental stress.
Flame retardant ensures safety in mining tunnels or industrial settings.
Where Is the (N)SHÖU O/J Cable Used in Indonesia?
The cable has been deployed in real-world Indonesian mining and industrial projects, including:
Coal mines in South Kalimantan: Used to power conveyor belts and mobile mining equipment.
Palm oil processing plants in Sumatra: Flexible cables supply motors in wet and oily environments.
Submersible water pumps in mining pits and industrial facilities: Cables are submerged up to 10 meters without compromising safety.
These case studies demonstrate the cable’s versatility and reliability in diverse operating conditions.
How Resistant Is the Cable to Environmental Hazards?
Flame Retardant: Meets IEC/EN 60332-1-2; reduces fire propagation risk.
Oil Resistant: Ideal for industrial environments where oil spills occur.
Abrasion Resistant: Outer rubber sheath withstands mechanical wear along conveyor systems or moving equipment.
Temperature Tolerance: Can function flexibly at temperatures from -25°C to +80°C, and fixed at -40°C to +80°C.
FAQ: What Do Users Commonly Ask About (N)SHÖU O/J Cables?
Can I Use the Cable for Submersible Pumps?
Yes. The cable is rated for temporary immersion in fresh water, making it suitable for submersible pumps. It should not be used for permanent underwater power transmission in rivers or channels.
How Flexible Is the (N)SHÖU O/J Cable?
The cable uses Class 5 flexible copper conductors, providing a minimum bending radius of 4× overall diameter when fixed and 5× when flexed. This allows easy installation on moving machinery and tight spaces.
How Do I Choose the Right Cable Size?
Consider current carrying capacity, distance, and voltage drop:
Identify equipment load in amps.

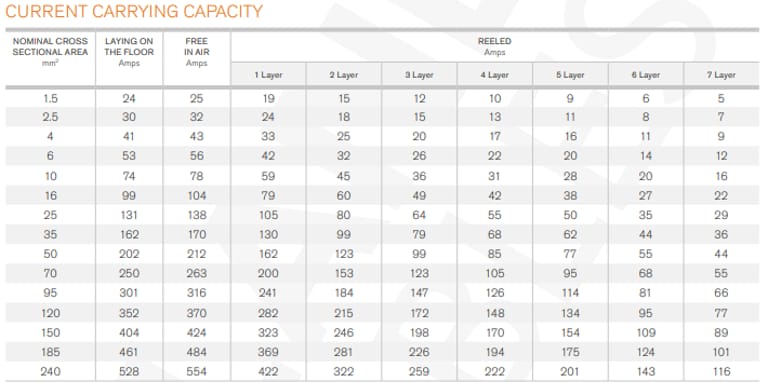

Check cross-section for sufficient current carrying capacity.

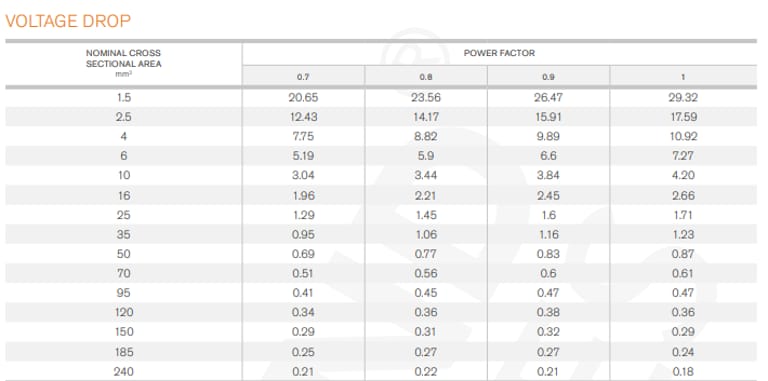

Factor in voltage drop for longer runs.
Consult the dimensional table for weight and installation feasibility.
What Are the Installation Recommendations?
Avoid sharp bends beyond the minimum bending radius.
Ensure proper support along moving equipment or conveyor paths.
Use cable reels for longer flexible runs to reduce mechanical stress.
Inspect periodically for abrasion, cuts, or insulation damage.
Why Choose (N)SHÖU O/J for Your Project?
Durable: Heavy-duty rubber resists oil, abrasion, and environmental stress.
Safe: Flame retardant and compliant with international standards.
Flexible: Suitable for mobile and submersible equipment.
Versatile: Compatible with multiple industrial applications, from mining to palm oil processing.
Whether you’re designing a mining conveyor system, industrial motor installation, or submersible pump setup, the (N)SHÖU O/J 0.6/1kV flexible rubber mining cable offers a reliable and safe solution. Contact your local supplier in Indonesia today to select the right size and configuration for your project, ensuring long-term performance and compliance with safety standards.
