N2XRH Cu/XLPE/LSZH/SWA Low Voltage 0.6/1kV Power Cable Multi-Core, Fire Resistant, Low Smoke Zero Halogen for Underground & Outdoor Applications, BS 6724 Compliant
General Information
Application | European reference for low voltage multi-core LSZH power cable with steel wire armour (SWA). Same construction as BS6724. Used for power and auxiliary control in power networks, underground, outdoor, indoor, and cable ducting. Suitable where fire, smoke, and toxic fumes pose a threat. |
Voltage Rating Uo/U | 0.6/1 kV |
Temperature Rating | Fixed: -20°C to +90°C |
Minimum Bending Radius | 1.5–16 mm²: 6 × overall diameter |
Conductor | Class 2 stranded copper |
Insulation | XLPE (Cross-Linked Polyethylene) |
Bedding | LSZH (Low Smoke Zero Halogen) |
Armour | SWA (Steel Wire Armour) |
Sheath | LSZH |
Core Identification | 2 core: Brown/Blue |
Alternative Core Identification | White cores with black numbers |
Sheath Colour | Black |
Standards | BS 6724, IEC/EN 60228, EN 50267-2-1, IEC/EN 60502-1 |

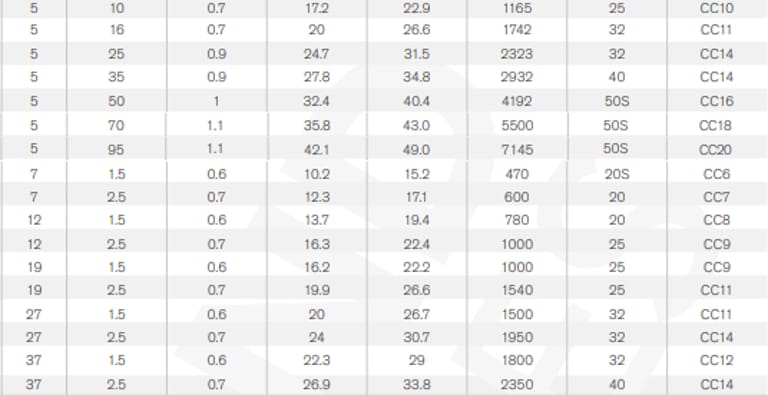

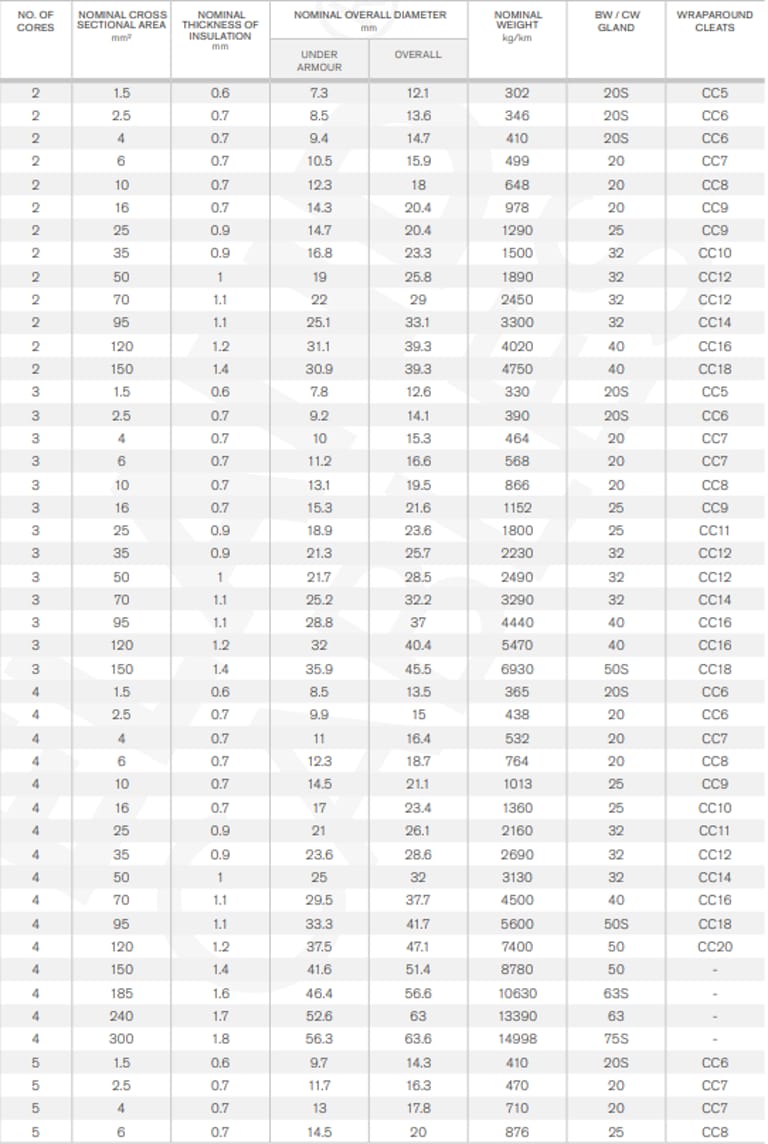

DIMENSIONS
When it comes to ensuring safe, reliable, and efficient power transmission in challenging environments, the N2XRH Cu/XLPE/LSZH/SWA Low Voltage 0.6/1kV Power Cable Multi-Core stands out as a European benchmark. Engineered for fire resistance, low smoke emission, and zero halogen content, this cable is tailored for underground, outdoor, and indoor applications where safety and performance are paramount.
What Is the N2XRH Power Cable?
The N2XRH power cable is a low voltage, multi-core, steel wire armoured (SWA) cable designed to deliver safe and reliable power under harsh conditions. It is fully compliant with BS 6724 and other international standards such as IEC/EN 60228, EN 50267-2-1, IEC/EN 60502-1, and meets flame retardancy requirements (IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat C) as well as Low Smoke Zero Halogen (LSZH) standards IEC/EN 60754-1/2 and IEC/EN 61034-1/2.
This cable is widely used in power networks, underground installations, outdoor distribution, and industrial applications, particularly in areas where fire hazards and toxic fume emissions are critical concerns.
How Does N2XRH Compare With Other Low Voltage Cables?
Compared with standard PVC-insulated cables, the N2XRH offers superior fire resistance, reduced smoke emission, and zero halogen content, making it ideal for sensitive areas like underground tunnels, industrial plants, and public spaces.
Feature | Standard PVC Cable | N2XRH Cable |
|---|---|---|
Fire Resistance | Limited | Flame Retardant IEC/EN 60332-1-2, Cat C IEC/EN 60332-3-24 |
Smoke Emission | High | Low Smoke Zero Halogen (LSZH) |
Toxic Fumes | Yes | Minimal |
Mechanical Protection | Optional | Steel Wire Armour (SWA) |
Temperature Range | 0–70°C | -20°C to +90°C |
Ideal Use | Indoor/outdoor | Underground, outdoor, cable ducts, high-risk fire zones |
This table highlights why N2XRH is often preferred for critical infrastructure projects, especially in Indonesia’s growing urban and industrial centers.
Where Can N2XRH Power Cable Be Used?
The N2XRH cable is versatile, supporting power and auxiliary control systems:
Underground Installations – Ideal for tunnels, mines, and underground power distribution due to fire resistance and low smoke.
Outdoor Applications – Resistant to mechanical stress, UV exposure, and environmental hazards.
Industrial Plants – Provides safe power to heavy machinery, control panels, and auxiliary equipment.
Cable Ducting and Buried Installations – SWA armour protects against crushing and rodents.
Case Study: Indonesian Mining Project
A major mining company in Sulawesi, Indonesia, replaced standard PVC cables with N2XRH multi-core cables for underground power distribution. The results:
Reduced fire hazard due to LSZH properties
Improved mechanical durability under heavy machinery impact
Lower maintenance costs with SWA protection
This demonstrates the real-world effectiveness of the N2XRH in harsh tropical and industrial environments.
Frequently Asked Questions (FAQ)
How fire resistant is the N2XRH cable?
The N2XRH cable is flame retardant according to IEC/EN 60332-1-2 and Cat C IEC/EN 60332-3-24, ensuring that in case of fire, the cable prevents flame propagation and minimizes fire risk.
Can N2XRH be used in wet or outdoor environments?
Yes. With LSZH sheath and SWA protection, it is suitable for outdoor, underground, and ducted applications, including wet or humid conditions.
How many cores are available?
N2XRH is multi-core, ranging from 2-core to 37-core, allowing flexibility for power and control applications in complex systems.
What are the advantages over standard PVC cables?
Compared to PVC cables, N2XRH offers:
Low smoke and zero halogen emissions
Better fire resistance
Higher mechanical protection with SWA
Wider temperature operating range (-20°C to +90°C)
How do I choose the right size?
Select the cross-sectional area based on current carrying capacity, installation method (in ground, ducting, or free air), and voltage drop requirements. The tables above provide a reference.
Are there any local Indonesian standards I should consider?
While N2XRH is BS 6724 compliant, it can be used in Indonesia where SNI (Standar Nasional Indonesia) or IEC-based regulations apply. Proper certification and approval should be obtained for local projects.
Why Choose N2XRH for Your Project?
The N2XRH low voltage multi-core cable is a complete solution for safe and reliable power distribution, combining:
High-quality copper conductors for superior electrical performance
XLPE insulation for thermal and mechanical robustness
SWA armour for mechanical protection
LSZH bedding and sheath for fire safety and minimal toxic emissions
Whether it’s industrial plants, underground tunnels, outdoor networks, or cable ducts, the N2XRH cable ensures safety, compliance, and durability.
For engineering teams and project managers seeking reliable low voltage power solutions in Indonesia, N2XRH Cu/XLPE/LSZH/SWA cables are an ideal choice. Ensure safety, compliance, and long-term performance by specifying N2XRH cables for your next industrial, underground, or outdoor power project.
Contact your local N2XRH distributor or engineering consultant today to select the right configuration, size, and installation accessories for your project.
