H07RN-F Cable: Complete Guide to 450/750V Heavy-Duty Flexible Rubber Cable – Advantages, Technical Specifications & Essential Applications in Indonesia

Explore the H07RN-F cable: its EN 50525-2-21 construction, AD8 water resistance, EPR/PCP materials, and superior flexibility for 450/750V industrial use. Learn why Indonesia’s mining, construction, ports, and tropical climate demand this heavy-duty rubber cable over PVC alternatives. Practical procurement guide for dealers and buyers.

Li Wang

4/9/20267 min read

In the demanding world of industrial power distribution, few cables match the versatility and resilience of the H07RN-F. Designed as a heavy-duty flexible rubber trailing cable, it delivers reliable 450/750V performance in environments where ordinary PVC cables fail rapidly. For cable distributors, procurement managers, and project engineers in Indonesia and beyond, understanding this cable is not merely technical knowledge—it is a strategic advantage in specifying solutions that minimize downtime, reduce replacement costs, and ensure compliance with harsh operating conditions.

This comprehensive guide draws directly from manufacturer technical data (including the authoritative Feichun Cables resource) and cross-referenced international standards such as EN 50525-2-21, IEC/EN 60332-1-2, and AD8 water-resistance ratings. We will dissect the cable’s definition, construction, performance metrics, key advantages, global and Indonesia-specific applications, and the economic and environmental drivers making it indispensable in Southeast Asia’s fastest-growing archipelago economy. By the end, procurement professionals will have actionable insights for specification, installation, and long-term cost analysis.

What Is H07RN-F Cable?

The designation H07RN-F follows the European harmonized cable coding system established under CENELEC and adopted worldwide. Breaking it down:

H: Harmonized (meets European harmonization standards for safety and interoperability).
07: Rated voltage 450/750 V (Uo/U); suitable for fixed protected installations up to 1 kV.
R: Rubber insulation (EPR – Ethylene Propylene Rubber, type EI4).
N: Neoprene (Polychloroprene, PCP) outer sheath, type EM2.
F: Flexible conductor construction (Class 5 per EN 60228).

This coding confirms the cable’s design for medium mechanical stress in dry, damp, wet, or outdoor environments, including agricultural premises and temporary constructions. It complies with EN 50525-2-21 (replacing older HD 22.4), EN 60228 for conductors, and IEC/EN 60332-1-2 for flame retardancy. Additional certifications include AD8 submersion rating (permanent water immersion), UV resistance, oil/grease resistance, and RoHS/REACH compliance for environmental safety.

Historically, rubber-sheathed cables evolved from early 20th-century mining and marine needs where PVC proved inadequate. The modern H07RN-F variant emerged in the 1970s–1980s as European standards harmonized to address mobile equipment demands. Today, it serves as the benchmark for heavy-duty flexible power distribution, with Class 5 stranded copper enabling over 30,000 flex cycles without conductor fatigue—far exceeding rigid or semi-flexible alternatives.

Core identification follows strict conventions for safety and traceability:

1-core: Black
2-core: Blue + Brown
3-core: Green/Yellow + Blue + Brown
4-core: Green/Yellow + Brown + Black + Grey
5-core: Green/Yellow + Blue + Brown + Black + Grey
6+ cores: Black cores with white numbering + Green/Yellow earth (when applicable).

Sheath color is standard black for UV stability and visibility in industrial settings. These details ensure rapid identification during installation and maintenance, critical for procurement teams managing large-scale projects.

In-Depth Technical Specifications and Performance Data

Voltage rating is 450/750 V (Uo/U), with 1 kV capability in fixed, protected installations. Test voltage is 2.5 kV for 5 minutes. Maximum conductor temperature: +90°C fixed, +85°C in protected fixed use, short-circuit peak up to +250°C (5 s). Operating ranges: fixed installations –30°C to +90°C; flexed (mobile) –15°C to +90°C. These wide ranges make the cable suitable for equatorial climates where daytime highs exceed 35°C and nighttime lows approach 20°C with high humidity.

Bending radius requirements preserve mechanical integrity:

Fixed: 4 × overall diameter
Flexed: 6 × overall diameter

Exceeding these risks insulation cracking or conductor breakage—procurement tip: always verify drum or reel specifications during mobile use.

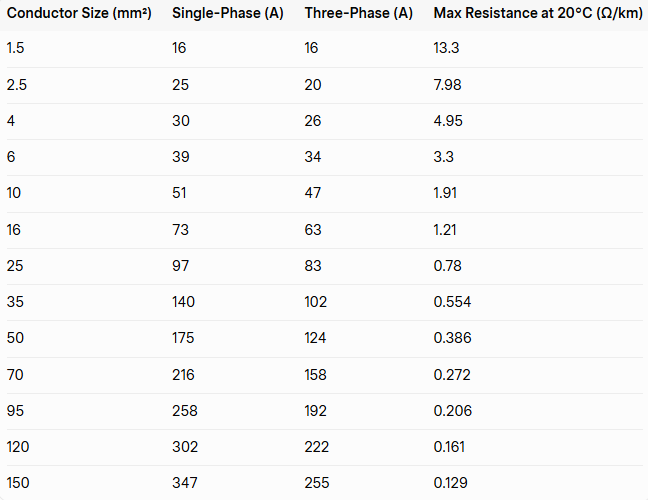

Current-carrying capacity (derived from BS 7671 / IEC 60364-5-52 at 60°C free air, 30°C ambient) illustrates scalability across sizes (1.5–150 mm² typical):

For reeling drums (common in mobile generators or cranes), apply derating: ventilated radial 85%, unventilated 75%; multi-layer cylindrical down to 35% for 4 layers. Ignoring derating risks overheating and premature failure—essential knowledge for site engineers.

Environmental ratings elevate performance:

AD8: Permanent submersion (tested >100 days at 1 kV).
AG2: Medium severity mechanical impact.
Flame retardant (IEC 60332-1-2): self-extinguishing, no flaming droplets, char length ≤50 mm.
UV, ozone, oil, grease, and chemical resistant via PCP sheath.

These metrics are verified against EN 50525-2-21 and manufacturer datasheets, providing procurement teams with defensible data for tender specifications.

Detailed Construction: Materials Engineered for Extreme Resilience

The multi-layer architecture is the foundation of H07RN-F superiority:

Conductor: Class 5 flexible annealed copper (EN 60228). Fine strands (max 0.26–0.51 mm diameter depending on size) enable exceptional flexibility. Resistance values match the table above, ensuring low voltage drop even in long runs.
Insulation: EPR (Ethylene Propylene Rubber, EI4). Thickness scales with cross-section (0.8–3.0 mm). EPR offers superior dielectric strength, thermal stability, and resistance to ozone/oxidation compared to PVC or XLPE in flexed applications.
Core Assembly: Cores laid up with fillers for circularity; taped where required for mechanical stability.
Outer Sheath: PCP (Polychloroprene, EM2). Thickness up to 2.4 mm (size-dependent). This synthetic rubber delivers the cable’s hallmark toughness: abrasion resistance, oil/grease immunity, weatherproofing, and AD8 waterproofing. Black pigmentation enhances UV stability.

No fillers or braids are needed beyond standard lay-up, keeping the cable lightweight yet robust (weights range ~58 kg/km for 1×1.5 mm² to over 1,000 kg/km for multi-core large sizes). This construction yields a cable that withstands dragging, crushing, and repeated coiling—conditions routine on Indonesian construction sites or mining operations.

Why H07RN-F Outperforms PVC and Other Alternatives

H07RN-F’s advantages stem from material science tailored to mobile, outdoor, and harsh-duty use:

Unmatched Flexibility: Class 5 conductors + rubber matrix allow tight bending and >30,000 cycles. PVC cables stiffen in heat or crack in cold; H07RN-F remains pliable from –30°C upward.
Superior Environmental Resistance: PCP sheath resists UV degradation, ozone cracking, and salt spray—critical in coastal or tropical zones. AD8 rating enables permanent submersion; PVC typically fails after weeks in wet conditions.
Mechanical Durability: AG2 impact rating and abrasion resistance handle dragging across concrete, gravel, or rebar. Oil/grease resistance prevents swelling in machinery environments.
Thermal Performance: +90°C continuous rating (vs PVC’s typical +70°C) supports higher loads without derating in hot climates. Short-circuit tolerance is exceptional.
Safety and Longevity: Flame retardancy reduces fire propagation risk. Expected service life exceeds 10–15 years in mobile use versus 3–5 years for PVC equivalents, lowering total cost of ownership (TCO).

Comparative analysis (rubber vs PVC): In tropical testing, H07RN-F shows <5% degradation after 1,000 hours UV exposure; PVC can lose 20–30% elongation. Oil immersion tests confirm PCP integrity where PVC embrittles. For Indonesia’s high-humidity, UV-intense conditions, these translate to fewer faults and safer operations.

Procurement benefit: Higher upfront cost (typically 20–40% premium) is offset by reduced maintenance, downtime, and replacement frequency—often achieving ROI within 18–24 months in heavy-use scenarios.

Global Applications and Indonesia-Specific Use Cases

Globally, H07RN-F powers:

Mobile generators and welding equipment.
Construction tools, cranes, and temporary lighting.
Mining drills and conveyors.
Port cranes, ship-to-shore supply, and marine deck machinery.
Stage/AV systems and event power.
Submersible pumps in water treatment or agriculture.
Cold-storage and severe industrial refrigeration.

In Indonesia, applications align with national development priorities. The archipelago’s 17,000+ islands and booming extractive/manufacturing sectors demand cables that endure constant movement and equatorial weather.

Mining Sector (Nickel, Coal, Gold): Indonesia is the world’s top nickel producer. H07RN-F supplies mobile crushers, drills, and stackers in open-pit and underground operations. AD8 rating handles monsoon flooding; oil resistance tolerates hydraulic fluid exposure. Projects in Sulawesi and Halmahera routinely specify it for 400 V three-phase mobile substations.

Construction and Infrastructure: Government infrastructure spending (IDR 400+ trillion annually) drives roads, bridges, airports, and power plants. On-site generators and heavy machinery use H07RN-F for temporary distribution. Flexibility simplifies installation on uneven terrain; weather resistance prevents outages during rainy seasons.

Ports and Maritime: With 1,000+ ports and major hubs (Tanjung Priok, Belawan), ship-to-shore and crane power demand UV/salt-resistant cables. H07RN-F supports high-current single-core variants for large vessels and container handlers.

Agriculture and Water Management: Irrigation pumps and drainage in flood-prone regions leverage AD8 submersion capability. Palm oil plantations and food processing plants use it for mobile processing equipment.

Manufacturing and Renewables: Factories in Java and Batam, plus emerging wind/solar farms, rely on it for maintenance crawlers and temporary arrays.

Local distributors (JJ-Lapp Cable Indonesia, RS Components Indonesia) stock or import H07RN-F, often SPLN-certified for utility compliance. Export data confirms strong regional demand, with Indonesian projects importing from European/Chinese manufacturers meeting HAR standards.

Why Indonesia Specifically Requires H07RN-F Cable

Indonesia’s equatorial location imposes unique stresses: year-round 80–95% humidity, 3,000+ mm annual rainfall in many regions, intense UV (index 10–12), and frequent monsoons/typhoons. PVC cables degrade rapidly—cracking, water ingress, insulation breakdown—leading to short circuits, fires, and project delays. H07RN-F’s PCP sheath and EPR insulation maintain integrity, with proven performance in similar ASEAN tropical markets.

Economically, Indonesia’s GDP growth (projected 5–6% annually) rests on infrastructure (new capital relocation, high-speed rail), mining exports (nickel for EV batteries), and manufacturing FDI. These sectors feature high mobile-equipment density: cranes move hourly, generators relocate daily, pumps operate submerged. Cable failure here halts operations costing thousands per hour.

Regulatory drivers include SPLN standards (Perusahaan Listrik Negara) and occupational safety mandates (K3). H07RN-F’s flame-retardant and mechanical ratings help meet these, reducing insurance premiums and liability.

Risk mitigation: In mining, where explosive atmospheres may occur, the cable’s ATEX-compatible variants (when specified) enhance safety. Construction tenders increasingly demand documented TCO analysis—H07RN-F consistently demonstrates lower lifecycle costs in humid, high-traffic environments.

Market trends reinforce demand: Indonesia’s rubber flexible cable segment grows with industrialization and renewable integration. Importers note preference for HAR-certified H07RN-F over generic rubber due to traceability and performance guarantees.

Practical Procurement and Installation Guide for Indonesian Buyers

Selection Checklist:

Confirm voltage (450/750 V), core count, and size via current tables + 20–30% margin.
Verify AD8 for wet/submerged use; specify oil-resistant grade.
Request third-party test reports (flame, UV, immersion).
Calculate derating for drums/reels in mobile setups.
Ensure SPLN or SNI marking for local projects.

Installation Best Practices: Maintain bending radii; use proper glands for terminations; avoid sharp edges. For buried ducts, add mechanical protection. Periodic visual/tactile inspection detects early abrasion.

Maintenance Tips: Clean oil residue quarterly; store coils off ground; test insulation resistance annually. Expected life: 10+ years with proper handling.

Cost-Benefit Example: A 3×25 mm² run (100 m) on a mining site: PVC replacement every 2 years (~IDR 50 million total over 10 years) vs H07RN-F single install (~IDR 35 million) with zero unplanned downtime—net savings exceed 40%.

Conclusion

As Indonesia pursues net-zero ambitions and smart-grid expansion, H07RN-F will evolve with low-smoke zero-halogen (LSZH) variants and higher-voltage options. Integration with IoT monitoring for predictive maintenance is emerging.

In summary, the H07RN-F cable is more than wiring—it is engineered resilience for Indonesia’s industrial renaissance. Its Class 5 copper, EPR insulation, PCP sheath, and AD8/EN 50525-2-21 credentials deliver flexibility, durability, and safety where PVC cannot. For distributors and procurement leaders, specifying H07RN-F means fewer failures, lower TCO, and compliance in the world’s most dynamic tropical economy.

Procurement teams seeking reliable supply chains should partner with HAR-certified manufacturers and local distributors offering full traceability. The data is clear: in Indonesia’s heat, rain, and relentless industrial pace, H07RN-F is not optional—it is operational insurance.
