H05VV5-F Flexible PVC Power & Instrumentation Cable 300/500V Oil, Chemical & Fire Resistant for Industrial Machinery
Cable Name | H05VV5-F Cable |
Application | Flexible power, process control and instrumentation cable for industry and machinery environment. Resistant to most usual chemicals, oil and grease. |
Voltage Rating (Uo/U) | 300/500V |
Voltage Test | 2 kV |
Temperature Rating | Fixed: -40ºC to +70ºCInstallation: -5ºC to +70ºC |
Conductor Maximum Temperature | +70ºC |
Minimum Bending Radius | Fixed Installation: 4 × overall diameterMoved Application: 12.5 × overall diameter |
Conductor | Class 5 Fine Stranded Bare Copper |
Insulation | PVC TI 2 (Polyvinyl Chloride) |
Outer Sheath | PVC TM2 (Polyvinyl Chloride) |
Core Identification | Black numbered + Green/Yellow |
Sheath Colour | Grey |
Standards | VDE 0281-12, VDE 0482-332-1-2, EN 60811-2-1Fire Retardant according to IEC 60332-1 |

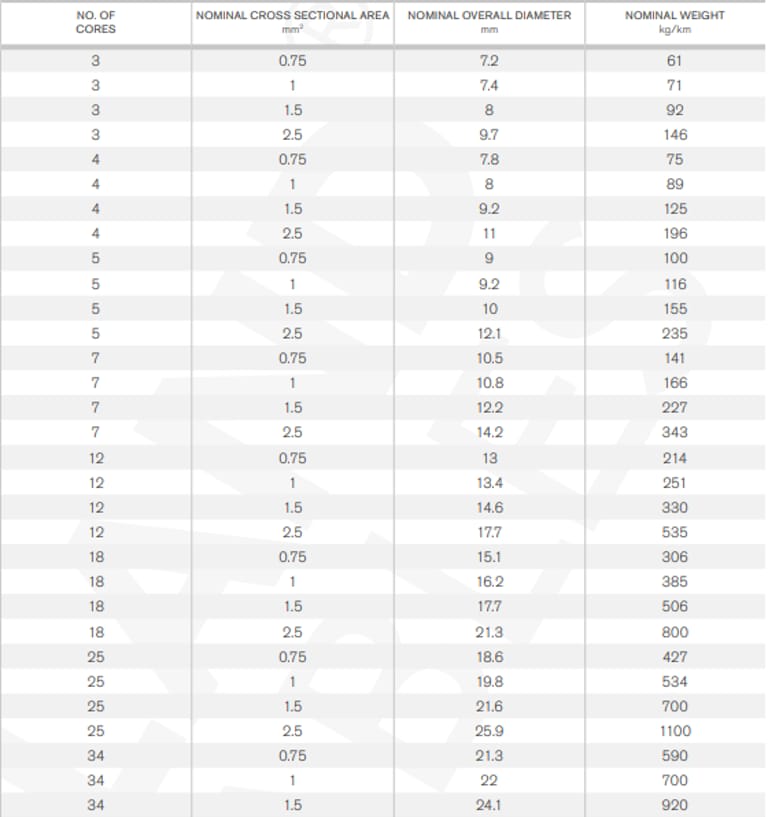

DIMENSIONS
When selecting power and instrumentation cables for industrial machinery, engineers and procurement specialists often face numerous questions: Which cable type is most reliable under harsh conditions? How does it resist oil, chemicals, and fire? And importantly, how does it compare with similar industrial cables? The H05VV5-F Flexible PVC Power & Instrumentation Cable 300/500V has emerged as a preferred solution in Indonesia’s manufacturing and industrial sectors.
What is the H05VV5-F Cable and Where Is It Used?
The H05VV5-F cable is a flexible power and instrumentation cable designed for industrial environments. Its primary applications include:
Powering industrial machinery with moving parts.
Supplying process control systems and instrumentation devices.
Environments exposed to oils, chemicals, and grease.
Indoor and outdoor installations where moderate flexibility is required.
In Indonesia, H05VV5-F cables are widely deployed in textile factories in Bandung, automotive assembly lines in Jakarta, and palm oil processing plants in Sumatra, where equipment movement, chemical exposure, and heat resistance are crucial considerations.
How Does H05VV5-F Compare With Other Industrial Cables?
When considering alternatives, H05VV5-F competes with H07V-R or NYM cables. Here’s a quick comparison:
Feature | H05VV5-F | H07V-R | NYM |
|---|---|---|---|
Voltage Rating | 300/500V | 450/750V | 300/500V |
Flexibility | High (fine stranded) | Medium | Low (solid core) |
Chemical & Oil Resistance | Excellent | Moderate | Low |
Fire Retardant | Yes (IEC 60332-1) | No | Yes |
Typical Use | Machinery & instrumentation | Fixed power lines | General building wiring |
Minimum Bending Radius | 4 × OD fixed / 12.5 × OD moved | 6 × OD | 8 × OD |
Insight: For machinery with moving parts or exposure to oil and chemicals, H05VV5-F is superior. NYM and H07V-R are better suited for fixed, less demanding installations.
How Is H05VV5-F Cable Used in Real Industrial Settings in Indonesia?
Case Study 1: Palm Oil Processing Plant, Sumatra
A large-scale palm oil mill uses H05VV5-F cables to supply motorized conveyors and crushers. The cables endure exposure to oil spills, high humidity, and frequent mechanical movement. Over two years of operation, no cable failures were reported, demonstrating durability and chemical resistance.
Case Study 2: Textile Factory, Bandung
In a textile factory, H05VV5-F cables power looms and automated cutting machines. Flexibility allowed for easy installation along moving machinery, and the grey PVC sheath aided in visual inspections during preventive maintenance.
FAQ: Common Questions About H05VV5-F Cable
Can H05VV5-F Cable Be Used Outdoors?
Yes, the PVC TM2 sheath offers moderate UV and weather resistance. However, prolonged direct sunlight may degrade the insulation; consider protective conduits or trays.
How Resistant Is H05VV5-F Cable to Oils and Chemicals?
H05VV5-F is designed to resist most industrial oils, greases, and common chemicals, making it ideal for factory floors, workshops, and oil-exposed equipment.
What Makes H05VV5-F Fire Retardant?
The cable conforms to IEC 60332-1, meaning it resists flame propagation along its length, reducing fire hazards in industrial installations.
How Flexible Is H05VV5-F Compared to Standard PVC Cables?
Thanks to its fine stranded Class 5 copper conductors, H05VV5-F is significantly more flexible than solid-core cables like NYM, ideal for moving machinery and process control systems.
What Are the Typical Voltage and Current Ratings?
The cable is rated at 300/500V. Current-carrying capacity depends on the cross-sectional area and installation method. For example, a 3-core 2.5 mm² cable can handle up to 21–25A in open air, while smaller cores like 0.75 mm² handle 6–8A.
How Does H05VV5-F Compare in Price and Lifespan?
Although slightly more expensive than standard NYM cables, H05VV5-F offers longer lifespan in chemically aggressive environments and reduced maintenance costs due to its durability and flexibility.
What Are the Best Applications for H05VV5-F Cable?
Industrial machinery power supply: Conveyors, motors, and automated equipment.
Process control and instrumentation: Sensors, relays, and industrial control panels.
Temporary installations with movement: Mobile machinery or flexible connections in factories.
Chemical and oil-prone environments: Oil mills, automotive workshops, and manufacturing plants.
Why Should You Choose H05VV5-F for Your Project?
Selecting the right cable is more than just voltage rating—it’s about longevity, safety, and operational efficiency. H05VV5-F provides:
Chemical and oil resistance: Reduces risk of insulation failure.
Fire retardancy: Protects equipment and personnel.
Flexibility for moving machinery: Simplifies installation and reduces mechanical stress.
Wide availability in Indonesia: Supported by local distributors and service centers.
For industrial projects in Indonesia, request a H05VV5-F sample or installation consultation from your trusted cable supplier to ensure optimal performance and compliance with industrial safety standards.
