Feichun ICEA & CAN/CSA Type W Three-Conductor Portable Power Cable 2kV
Feichun ICEA & CAN/CSA Type W Three-Conductor Portable Power Cable 2kV
Applications
Type W Three-Conductor Portable Power Cables are designed for general use where baregrounding
conductors are not required ordesired .
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

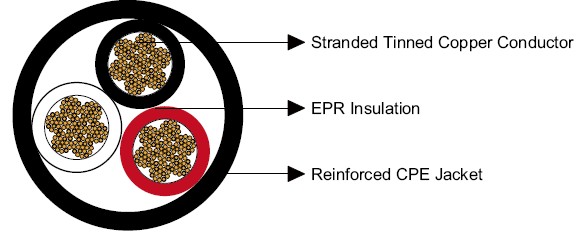

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be
offered as an option.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Maximum Operating Temperature: +90℃
Dimensions and Weight:
Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | |||
|---|---|---|---|---|---|---|---|---|
No. of cores×AWG/kcmil | - | inch | mm | inch | mm | lbs/kft | kg/km | A |
3×8 | 133 | 0.06 | 1.5 | 0.91 | 23.1 | 550 | 818 | 59 |
3×6 | 133 | 0.06 | 1.5 | 1.01 | 25.7 | 730 | 1086 | 79 |
3×4 | 259 | 0.06 | 1.5 | 1.17 | 29.7 | 1020 | 1518 | 104 |
3×2 | 259 | 0.06 | 1.5 | 1.34 | 34.0 | 1430 | 2128 | 138 |
3×1 | 259 | 0.08 | 2.0 | 1.51 | 38.4 | 1800 | 2678 | 161 |
3×1/0 | 266 | 0.08 | 2.0 | 1.65 | 41.9 | 2140 | 3184 | 186 |
3×2/0 | 342 | 0.08 | 2.0 | 1.75 | 44.5 | 2580 | 3839 | 215 |
3×3/0 | 418 | 0.08 | 2.0 | 1.89 | 48.0 | 2922 | 4347 | 249 |
3×4/0 | 532 | 0.08 | 2.0 | 2.04 | 51.8 | 3800 | 5654 | 287 |
3×250 | 741 | 0.095 | 2.4 | 2.39 | 60.7 | 4368 | 6500 | 320 |
3×350 | 888 | 0.095 | 2.4 | 2.66 | 67.5 | 5895 | 8772 | 394 |
3×500 | 1221 | 0.095 | 2.4 | 2.98 | 75.8 | 7820 | 11638 | 487 |
What Does “Type W” Mean in Portable Power Cables?
Type W is a heavy-duty portable power cable classification defined under ICEA S-75-381 / NEMA WC 58 and CAN/CSA C22.2 No. 96.
Type W cables are designed for:
Portable power distribution
Severe mechanical stress
Outdoor and industrial environments
Wet, oily, and abrasive conditions
Unlike lighter portable cords, Type W cables feature extra-heavy-duty jackets and insulation systems that maintain electrical integrity under repeated bending, dragging, and vibration.
What Is the Structure of Feichun Type W Three-Conductor Portable Power Cable 2kV?
How Are the Conductors Designed?
Feichun Type W cables use stranded annealed tinned copper conductors.
Why tinned copper?
Improved corrosion resistance
Better performance in humid and chemically aggressive environments
Longer service life compared with bare copper
The high strand count enhances flexibility, making the cable suitable for frequent movement.
What Insulation Material Is Used and Why?
The insulation is EPR (Ethylene Propylene Rubber).
Key advantages of EPR insulation:
Excellent dielectric strength for 2kV rating
Stable performance at elevated temperatures
Superior resistance to moisture and ozone
Maintains flexibility over a wide temperature range
This makes EPR ideal for industrial portable power systems.
What Makes the Outer Sheath Extra-Heavy-Duty?
The standard jacket material is reinforced Chlorinated Polyethylene (CPE), black.
CPE jacket benefits:
Outstanding abrasion resistance
High resistance to oils, fuels, and chemicals
UV and weather resistance for outdoor use
Flame retardant properties
Optional configurations include:
CSP, PCP, NBR, or PVC jackets
Two-layer jacket with reinforcing fibre between layers for extreme mechanical abuse
Which Standards Does Feichun Type W Cable Comply With?
Feichun Type W Three-Conductor Portable Power Cable 2kV meets key international standards:
ICEA S-75-381 / NEMA WC 58
CAN/CSA C22.2 No. 96
ASTM B172 (tinned copper conductors)
ASTM B33
These certifications ensure acceptance in North American projects and global industrial installations, including export markets such as Africa.
What Are the Key Electrical and Mechanical Specifications?
How Flexible Is the Cable During Installation?
Minimum bending radius: 6 × overall diameter (OD)
Designed for repeated flexing and relocation
What Is the Maximum Operating Temperature?
+90°C continuous operation
This allows safe use near heat-generating equipment without insulation degradation.
Where Is Type W Three-Conductor Portable Power Cable Commonly Used?
What Applications Is This Cable Designed For?
Type W three-conductor cables are designed for general use where bare grounding conductors are not required or desired.
Typical applications include:
Portable power distribution systems
Mobile transformers and generators
Industrial pumps and compressors
Temporary power at mining and construction sites
Shipyards, ports, and heavy manufacturing plants
How Does Type W Compare with Other Portable Power Cables?
Type W vs SOOW: Which Should You Choose?
Feature | Type W | SOOW |
|---|---|---|
Voltage rating | Up to 2kV | Typically 600V |
Jacket duty | Extra-heavy-duty | Heavy-duty |
Abrasion resistance | Excellent | Moderate |
Industrial suitability | Extreme | General |
Conclusion: Type W is preferred for higher voltage and harsher environments.
What Are the Best Installation Practices for Type W Cable?
How Can You Extend Service Life?
Avoid exceeding minimum bending radius
Use proper strain relief at terminations
Protect cables from sharp edges and crushing
Inspect jackets regularly in mobile applications
Frequently Asked Questions (FAQ)
Is Type W cable suitable for outdoor use?
Yes. The CPE jacket provides excellent UV, weather, and moisture resistance.
Can this cable be customized for specific projects?
Yes. Feichun offers alternative jacket materials and reinforced double-layer designs.
Is Type W cable suitable for mining equipment?
Absolutely. Its mechanical strength and flexibility make it ideal for mobile industrial equipment.
Does this cable meet both ICEA and CSA requirements?
Yes. It complies with both ICEA/NEMA and CAN/CSA standards.
Why Choose Feichun Type W Three-Conductor Portable Power Cable 2kV?
Feichun combines:
International standard compliance
Proven material selection
Flexible customization options
Field-tested performance in harsh environments
How Can Feichun Support Your Next Project?
If you are specifying Type W Three-Conductor Portable Power Cable 2kV for mining, industrial, or temporary power applications, Feichun can provide technical support, sizing guidance, and customized solutions to meet your operational requirements.
