Feichun ICEA & CAN/CSA Type G-GC Three-Conductor Flat Portable Power Cable 2kV for Use on AC Mining Equipment
Feichun ICEA & CAN/CSA Type G-GC Three-Conductor Flat Portable Power Cable 2kV for Use on AC Mining Equipment
Application:
These flat parallel cables are designed for use on AC mining equipment, such as A.C. shuttle cars, drills, cutting and loading machines.
Standards:
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

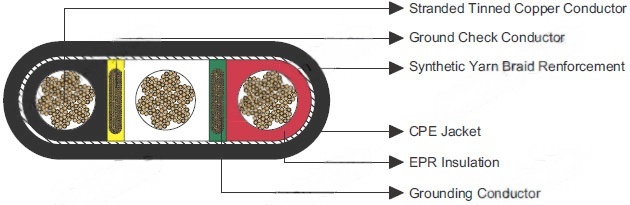

Construction:
Conductors Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Ground Check Conductor Tinned copper conductor with a yellow insulation.
Grounding Conductor Tinned copper conductor with an optional green outer covering.
Reinforcement Synthetic yarn.
Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties:
Minimum Bending Radius 6×OD
Maximum Conductor Operating Temperature +90℃
Dimensions and Weight:
Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
No. of cores × AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
3×6 | 133 | 8 | 8 | 0.06 | 1.5 | 0.095 | 2.4 | 0.66×1.67 | 16.8×42.4 | 900 | 1340 | 79 |
3×4 | 259 | 7 | 8 | 0.06 | 1.5 | 0.095 | 2.4 | 0.72×1.87 | 18.3×47.5 | 1175 | 1750 | 104 |
3×3 | 259 | 6 | 6 | 0.06 | 1.5 | 0.110 | 2.8 | 0.78×2.08 | 19.8×52.8 | 1395 | 2080 | 120 |
3×2 | 259 | 5 | 6 | 0.06 | 1.5 | 0.110 | 2.8 | 0.85×2.23 | 21.6×56.6 | 1625 | 2415 | 138 |
3×1 | 259 | 4 | 6 | 0.08 | 2.0 | 0.125 | 3.2 | 0.96×2.50 | 24.4×63.5 | 2090 | 3110 | 161 |
3×1/0 | 259 | 3 | 5 | 0.08 | 2.0 | 0.140 | 3.6 | 1.01×2.67 | 25.6×67.8 | 2470 | 3675 | 186 |
3×2/0 | 329 | 2 | 5 | 0.08 | 2.0 | 0.140 | 3.6 | 1.09×2.86 | 27.7×68.1 | 2940 | 4375 | 215 |
3×3/0 | 413 | 1 | 5 | 0.08 | 2.0 | 0.155 | 3.9 | 1.18×3.12 | 30.0×79.2 | 3515 | 5230 | 249 |
3×4/0 | 532 | 1/0 | 5 | 0.08 | 2.0 | 0.155 | 3.9 | 1.24×3.30 | 31.5×83.8 | 4245 | 6315 | 287 |
In the world of mining, safety, efficiency, and reliability are non-negotiable. One often overlooked yet critical component ensuring smooth operations is the portable power cable. Among the options available, the Feichun ICEA & CAN/CSA Type G-GC Three-Conductor Flat Portable Power Cable 2kV has emerged as a trusted choice for AC mining equipment, such as shuttle cars, drills, and cutting-loading machines. But what makes this cable stand out?
What Is the Construction of the Feichun Type G-GC Cable?
The Feichun Type G-GC cable is a flat parallel cable designed for heavy-duty industrial environments. Its construction ensures durability, flexibility, and optimal electrical performance:
Conductors: Stranded annealed tinned copper conductors provide excellent conductivity, corrosion resistance, and flexibility.
Insulation: Ethylene Propylene Rubber (EPR) insulation guarantees thermal stability, electrical insulation, and resistance to abrasion and moisture.
Ground Check Conductor: A tinned copper conductor with yellow insulation allows for continuous monitoring of grounding integrity.
Grounding Conductor: Tinned copper with optional green outer covering ensures reliable earthing and operator safety.
Reinforcement: Synthetic yarn adds tensile strength, enhancing mechanical durability.
Jacket: Reinforced heavy-duty or extra-heavy-duty Chlorinated Polyethylene (CPE) in black. Cables with diameters over 2.0 inches feature extra-heavy-duty jackets to withstand extreme mechanical stress.
Optional features include alternative jacket materials such as CSP, PCP, NBR, or PVC, and two-layer jackets with reinforcing fiber between layers for enhanced mechanical and environmental protection.
What Standards Does the Type G-GC Cable Comply With?
The Type G-GC cable meets several internationally recognized standards, ensuring safety, quality, and performance:
ICEA S-75-381 / NEMA WC 58 – Standards for power cable construction and electrical performance.
ASTM B 172 & B 33 – Specifications for copper conductors and tinned copper wires.
CAN/CSA C22.2 No. 96 – Canadian standard for flexible power cables.
Compliance with these standards guarantees that the cable performs reliably under harsh mining conditions, including underground South African mines.
How Does Type G-GC Compare to Other Mining Cables?
When selecting a portable power cable, engineers often compare Type G-GC with Type W and Type S cables:
Feature | Type G-GC | Type W | Type S |
|---|---|---|---|
Conductors | Stranded tinned copper | Stranded tinned copper | Stranded bare copper |
Insulation | EPR | EPR | XLPE |
Jacket Material | CPE | PVC | CPE/LSZH |
Mechanical Durability | High | Medium | High |
Thermal Rating | 90°C | 90°C | 90°C |
Application | AC Mining Equipment | Mobile Equipment | Fixed & Mobile |
Ampacity Range (A) | 79–287 | 70–270 | 80–300 |
Type G-GC is specifically optimized for AC mining applications with a flat, flexible design that reduces tangling and simplifies handling in confined underground spaces.
What Are Typical Applications of Type G-GC in South African Mines?
South Africa’s mining industry, including gold, platinum, and diamond operations, demands cables that can endure heavy loads, continuous movement, and harsh environments. Typical applications of Type G-GC include:
A.C. Shuttle Cars: Providing reliable power transfer in mobile ore transportation vehicles.
Drills and Cutting Machines: Enabling continuous operation without overheating or mechanical failure.
Loading Machines: Supplying stable power during high-load operations.
Case Study: At a platinum mine in the Rustenburg region, a fleet of AC shuttle cars powered by Feichun Type G-GC cables demonstrated 30% fewer downtime incidents over six months compared to previous PVC-jacketed cables. The reinforced CPE jacket and flat cable design contributed to improved flexibility and abrasion resistance in tunnel conditions.
Why Should South African Mining Operations Choose Feichun Type G-GC Cables?
South African mines operate under harsh conditions: underground tunnels, high humidity, abrasive rock surfaces, and continuous heavy equipment movement. Feichun Type G-GC cables offer:
Enhanced mechanical durability with reinforced jackets.
Flat design for ease of handling and storage.
EPR insulation for thermal stability and long-term reliability.
Multiple conductor sizes to match ampacity needs.
Proven performance in real-world South African case studies, including platinum and gold mines.
These features reduce downtime, improve safety, and provide cost-effective long-term performance.
For mining operators seeking reliable, durable, and high-performance portable power cables, Feichun Type G-GC is a proven solution. Contact Feichun or authorized distributors today to discuss your specific AC mining equipment needs and request a custom cable solution with optional heavy-duty jackets. Ensure your mining operation remains efficient, safe, and compliant with international standards. Email: Li.wang@feichuncables.com
