Submersible Pump Cable in Indonesian Mining: How Type 209 1.1 kV Cable Beats Acid Mine Drainage (AMD) and Deep Dewatering

In the rapidly developing Indonesian mining industry, drainage systems have become a critical element to maintain safety and operational continuity.

Mines such as Bukit Asam for coal, nickel mines in Kalimantan, copper in Papua, and gold mines in various regions face extreme tropical challenges: annual rainfall of 3,000–5,000 mm, complex hydrogeology, and daily water inflows of 10,000–50,000 m³.

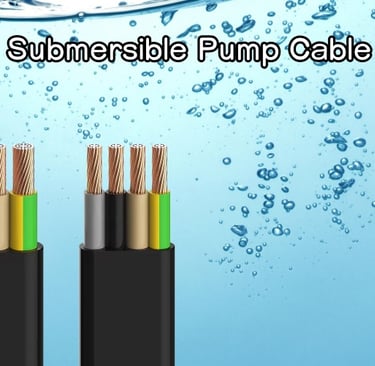

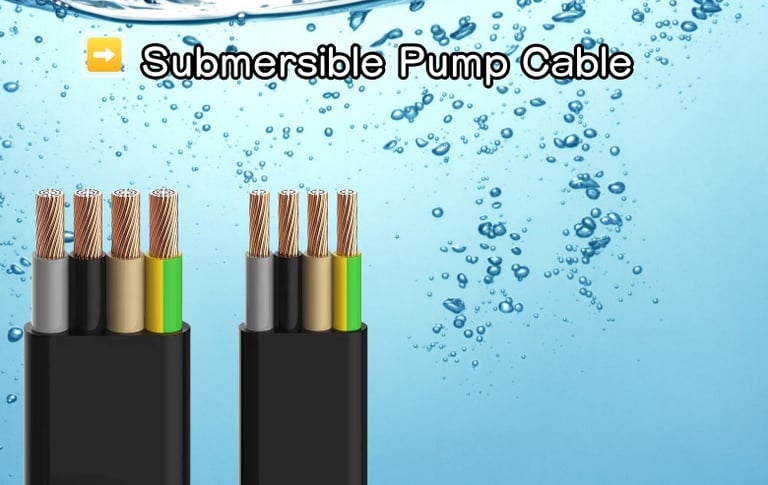

The submersible pump cable is not just a regular power cable — it is the “heart” of the underwater pumping system that operates 24/7 in highly corrosive Acid Mine Drainage (AMD) environments.

This article discusses in depth the submersible pump cable in the context of Indonesian mine dewatering, focusing on the Type 209 1.1 kV cable (especially the Feichun 3×25 mm² model), technical requirements per AS/NZS 1802, and practical recommendations for cable selection and installation. For cable distributors in Indonesia, procurement managers, cable technicians, and mining engineers, understanding this will help reduce downtime, extend asset life, and improve project ROI.

Primary Applications of Submersible Pump Cable in Indonesian Mining

Indonesian mining faces two main types of dewatering: sump pits (50–100 m depth) and deep well dewatering (200–500 m). Submersible pumps with power ratings of 75–500 kW operate continuously to prevent flooding that can halt production and create safety hazards.

The submersible pump cable serves as the main electrical feeder, permanently submerged in mine water containing H₂SO₄, FeSO₄, and abrasive particulates. At Bukit Asam, for example, the daily water volume that must be pumped reaches tens of thousands of cubic meters. Standard cables typically last only 2–3 years due to AMD corrosion, hydrostatic pressure, and tropical temperature cycles (30–50 °C air, 60–95 % humidity).

The Type 209 1.1 kV cable is introduced as a specialized solution designed for these conditions. With a 1.1/1.1 kV symmetrical construction, this cable can handle continuous loads while providing real‑time monitoring through a pilot core. The result? A service life of 4–6 years in Indonesian AMD environments, reducing replacement frequency and downtime losses that can amount to tens to hundreds of thousands of USD per day.

Technical Requirements for Submersible Pump Cable and Why They Must Be Met

In extreme Indonesian mine environments, technical cable requirements for submersible pumps are far more stringent than for general power cables. Below is an in‑depth analysis based on AS/NZS 1802 Type 209:

Corrosion and Chemical Resistance Against AMD (pH 3–5)

Requirement:
Outer jacket made of acid‑stable CPE or EPDM with magnesium hydroxide and aluminum hydroxide additives and enhanced cross‑linking. R‑EP‑90 EPR insulation with hydrophobic additives. Jacket mechanical strength must retain >90 % after 12 months immersion at pH 3.

Reason:
AMD forms from oxidation of pyrite (FeS₂), producing strong sulfuric acid and iron salts. This causes polymer hydrolysis and osmotic swelling. Standard cables lose 50 % jacket strength within 6 months, whereas acid‑resistant versions extend service life by 2–3×, significantly reducing the risk of sudden failure that can lead to flooding.

Water Resistance and Hydrostatic Pressure (Water‑Blocking + 50 bar)

Requirement:
Superabsorbent water‑blocking tapes (0.3–0.5 mm spiral wrap), thick EPR insulation (2.0–2.5 mm). After 72 h at 50 bar (equivalent to 500 m depth), insulation resistance remains >50 MΩ. Weight change after 7 days immersion < 1 %.

Reason:
At 500 m depth, hydrostatic pressure reaches 50 bar, compressing insulation and creating voids and partial discharges. Tropical temperatures and wet–dry cycles accelerate water diffusion. Water‑blocking technology slows penetration by 10–100×, preventing short‑circuits and sudden pump shutdowns.

Mechanical Strength and Flexibility (Drag & Impact Resistance)

Requirement:
2.5–3.0 mm thick PCP/CPE jacket with high mechanical impact rating. Tin‑plated Class 5 copper conductors. Minimum bending radius 6×OD (static) or 10×OD (dynamic).

Reason:
During installation and operation, the cable undergoes rock abrasion, impacts, and repeated flexing. Often used as a trailing cable without a dedicated reel, high flexibility prevents conductor fatigue and jacket damage in narrow mine tunnels.

Pilot Core + Ground Continuity Monitoring

Requirement:
Central pilot core 1×10 mm² tin‑plated copper with extra 1.0–1.2 mm insulation and semiconductive cradle. DC resistance for 500 m < 5 Ω. Low‑frequency signal monitoring (100–200 Hz).

Reason:
Insulation degradation due to AMD is not visibly detectable. A pilot core enables early detection of leakage before arc flash or fire occurs. Indonesian mining safety regulations require continuous ground monitoring systems.

Other Electrical and Environmental Requirements

Voltage rating: 1.1/1.1 kV (symmetrical design)
Maximum conductor temperature: 90 °C
Flame retardant per AS/NZS standards
UV resistance for exposed sections

Detailed Specifications and Advantages of Type 209 1.1 kV 3×25 mm² Feichun Cable

The Type 209 1.1/1.1 kV 3×25 mm² Feichun cable is the prime choice for Indonesian mining dewatering systems. Designed per AS/NZS 1802 and optimized for AMD and tropical conditions.

Technical Specifications:

• Conductors: 3×25 mm² + 3×10 mm² earth interstitial + 1×10 mm² central pilot (tin‑plated Class 5 copper, highly flexible)

• Insulation: R‑EP‑90 EPR, 2.0–2.5 mm thick

• Jacket: Acid‑resistant CPE/EPDM, 2.5–3.0 mm thick with Mg/Al hydoxide additives

• Outer Diameter: 36.5–39.5 mm

• Weight: 2 350–2 450 kg/km

• Ampacity: 112 A (air at 40 °C) / 134 A (fully submerged at 25 °C)

• Hydrostatic Pressure Rating: ≥ 50 bar (500 m depth)

• Bending Radius: 220 mm (static) / 390 mm (dynamic)

• Voltage Drop Example: ~3.6 % at 500 m, 100 A

• Pilot Core Resistance: ~2.5 Ω for 500 m

Key Advantages of Feichun vs. Standard Cables

• Superabsorbent water‑blocking tape + vacuum impregnation → drastically reduced water ingress

• Special AMD pH 3–5 additives + enhanced cross‑linking → service life 4–6 years

• Higher ROI due to fewer replacements despite slightly higher cost

Practical Recommendations for Selection, Installation, and Maintenance

Size Selection:

• 3×25 mm²: mainstream for 75–110 kW pumps

• 3×35 mm² or 3×50 mm²: for higher power pumps

• Type 210: for smaller pumps (simplified without complex pilot system)

Why Enhanced Feichun?

Built‑in water‑blocking, acid‑resistant additives, and vacuum processing make it best suited for Indonesian AMD. Though slightly pricier, reduced replacements and downtime savings make it most economical.

Installation Guidelines:

• Never suspend the pump directly from the cable (max tensile load 1 125 N). Use a separate steel wire rope and cable tray

• Lowering speed < 10 m/min

• Use IP68 connectors with epoxy potting + MOV surge protection (≤ 2 kV)

• Initial test: insulation resistance > 100 MΩ

Maintenance Schedule:

• Quarterly: measure insulation resistance and pilot core resistance

• Every 5 years: preventive replacement

• For extreme AMD or > 500 m depth: upgrade to Type 209 with Kevlar reinforcement or Type 441

Procurement Checklist:

• Full AS/NZS 1802 certificate

• 12‑month AMD immersion test report

• 50 bar 72‑h pressure test data

• Field test samples

Conclusion

The Type 209 1.1 kV 3×25 mm² Feichun submersible pump cable directly solves the three main pain points of Indonesian mine dewatering: AMD corrosion, high hydrostatic pressure, and blind‑spot monitoring. With precise specs, long life, and reliable performance, it ensures continuous operation of 75–500 kW pumps at depths up to 500 m.

For cable distributors, technicians, and mining engineers: contact the Feichun technical team with your specific project data (pump power, depth, water pH, and inflow) to get customized solutions, complete datasheets, and evaluation samples. Optimize your mine dewatering system and significantly improve operational profitability. Type 209 1.1 kV Feichun cable — the smartest choice for safe and efficient Indonesian mining.
