BS 5467 Copper Conductor Multi-Core SWA PVC Cable 0.6/1kV BASEC Approved Flame Retardant UV Resistant for Underground, Outdoor & Indoor Power Networks
Cable Overview
Item | Details |
|---|---|
Cable Name | BS 5467 Copper Conductor Multi Core SWA PVC BASEC 0.6/1kV Cable |
Application | Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications, and for use in cable ducting. |
Voltage Rating (Uo/U) | 0.6/1 kV |
Temperature Rating | Fixed: -25°C to +90°C |
Minimum Bending Radius | 1.5–16 mm²: 6 × overall diameter25 mm² and above: 8 × overall diameter |
Construction
Component | Material/Details |
|---|---|
Conductor | Class 2 stranded copper conductor |
Insulation | XLPE (Cross-Linked Polyethylene) |
Bedding | PVC (Polyvinyl Chloride) |
Armour | SWA (Steel Wire Armour) |
Sheath | PVC (Polyvinyl Chloride) |
Core Identification | 2 core: Brown Blue3 core: Brown Black Grey3 core (optional): Green/Yellow Blue Brown4 core: Brown Black Blue Grey4 core (optional): Green/Yellow Brown Black Grey5 core: Green/Yellow Brown Blue Black Grey7 core and above: White cores with Black numbers |
Sheath Colour | Black |
Standards & Certifications
Category | Details |
|---|---|
Third-Party Accreditation | BASEC approved; tested and certified by BASEC (British Approvals Service for Cables) |
Standards | BS 5467, IEC/EN 60502-1, IEC/EN 60228 |
Flame Retardant | IEC/EN 60332-1-2 |
UV Resistant | Yes |
Electrical Characteristics (Current Carrying Capacity, Amps)
Nom. Cross Section mm² | Method C (Clipped Direct) | Method E (Free Air) | Method D (In Ground/Duct) |
|---|---|---|---|
1.5 | 27 | 29 | 25 |
2.5 | 36 | 39 | 33 |
4 | 49 | 52 | 44 |
6 | 62 | 66 | 53 |
10 | 85 | 90 | 71 |
16 | 110 | 115 | 91 |
25 | 146 | 152 | 116 |
35 | 180 | 188 | 139 |
50 | 219 | 228 | 164 |
70 | 279 | 291 | 203 |
95 | 338 | 354 | 239 |
120 | 392 | 410 | 271 |
150 | 451 | 472 | 306 |
185 | 515 | 539 | 343 |
240 | 607 | 636 | 395 |
300 | 698 | 732 | 446 |
400 | 787 | 847 | - |
Voltage Drop (mV/A/m)
Nom. Cross Section mm² | 2-Core DC | 2-Core Single-Phase AC | 3/4-Core Three-Phase AC |
|---|---|---|---|
1.5 | 31 | 31 | 27 |
2.5 | 19 | 19 | 16 |
4 | 12 | 12 | 10 |
6 | 7.9 | 7.9 | 6.8 |
10 | 4.7 | 4.7 | 4 |
16 | 2.9 | 2.9 | 2.5 |
25 | 1.85 | 1.90 | 1.65 |
35 | 1.35 | 1.35 | 1.15 |
50 | 0.98 | 1.00 | 0.87 |
70 | 0.67 | 0.69 | 0.60 |
95 | 0.49 | 0.52 | 0.45 |
120 | 0.39 | 0.42 | 0.37 |
150 | 0.31 | 0.35 | 0.30 |
185 | 0.25 | 0.29 | 0.26 |
240 | 0.195 | 0.24 | 0.21 |
300 | 0.155 | 0.21 | 0.185 |
400 | 0.12 | 0.19 | 0.165 |

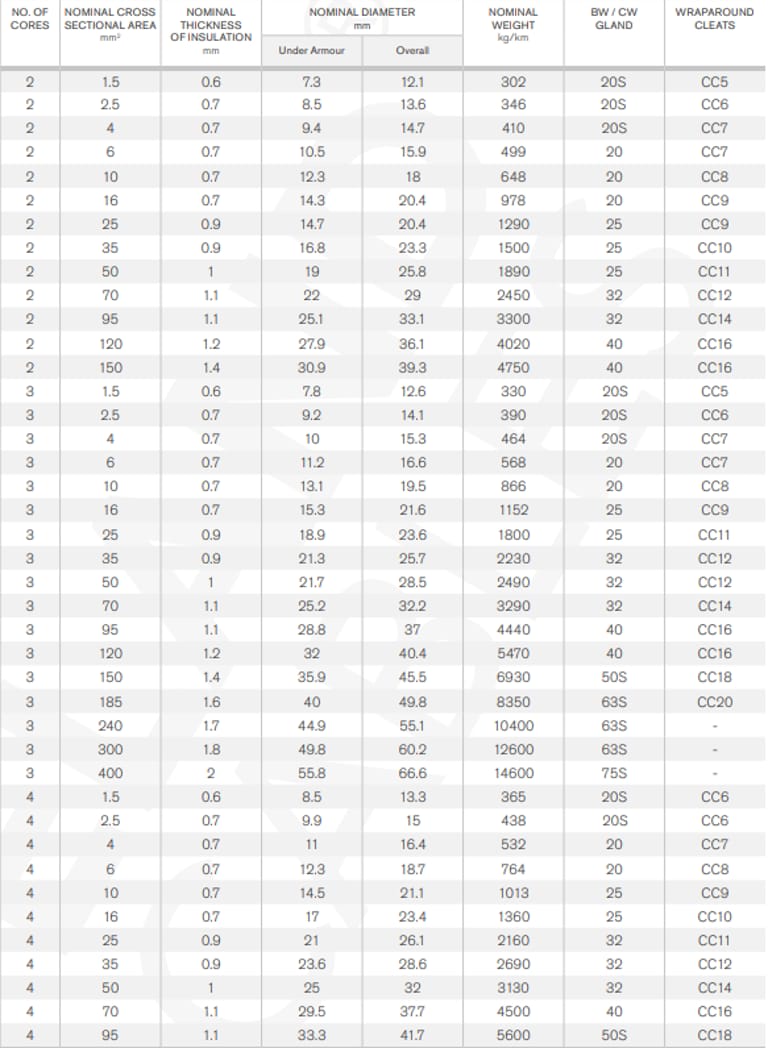

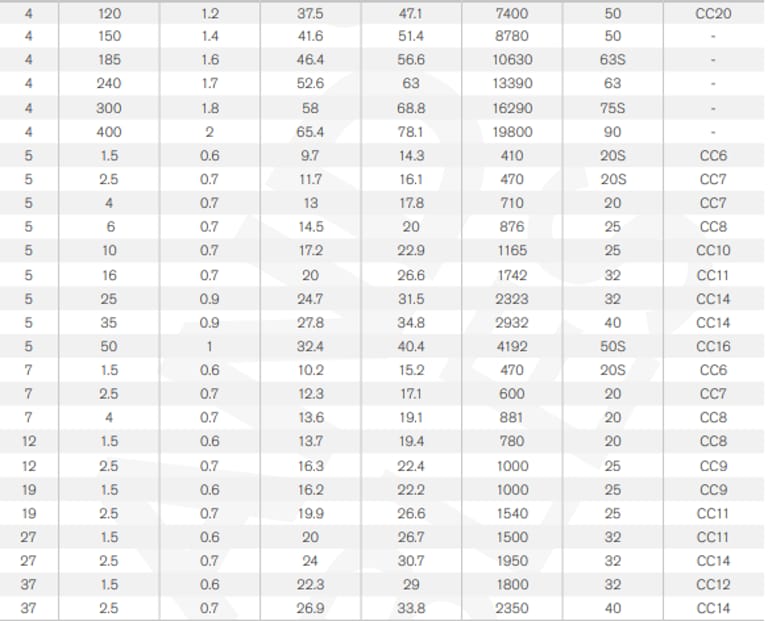

DIMENSIONS
When it comes to high-quality, durable, and safe power distribution in underground, outdoor, and indoor networks, BS 5467 Copper Conductor Multi-Core SWA PVC Cable stands out as a trusted solution. Widely approved by BASEC and compliant with international standards like IEC/EN 60502-1 and IEC/EN 60228, this cable is engineered to withstand harsh environmental conditions, mechanical stresses, and high electrical loads.
Where Can BS 5467 Cable Be Applied?
BS 5467 cables are highly versatile and suitable for:
Underground power networks – SWA protection prevents mechanical damage during trenching.
Industrial facilities – Ideal for machinery connections, plant wiring, and heavy-duty electrical systems.
Outdoor installations – UV and flame resistant for solar farms, street lighting, and telecom networks.
Indoor power networks – Cable ducting in buildings, factories, and commercial centers.
High-load applications – Capable of handling significant single-phase and three-phase loads efficiently.
Case Study – Indonesia: In Jakarta’s industrial zones, BS 5467 cables are used in underground distribution networks for factories and high-rise buildings. Their SWA protection and flame-retardant PVC sheath ensure long-term reliability, even in areas with heavy traffic and frequent maintenance works.
How Does BS 5467 Compare With Other Multi-Core Power Cables?
When selecting cables for industrial or outdoor power networks, engineers often compare BS 5467 with similar standards like BS 5468 or IEC-rated cables.
Feature | BS 5467 | BS 5468 | Typical XLPE/SWA IEC Cable |
|---|---|---|---|
Conductor | Copper Class 2 | Copper Class 1 | Copper or Aluminum |
Insulation | XLPE | PVC | XLPE or EPR |
Armour | SWA | SWA | SWA or Aluminum Armour |
Flame Retardant | Yes | Limited | Yes |
UV Resistant | Yes | Limited | Optional |
BASEC Certification | Yes | No | Optional |
Typical Use | Underground, outdoor, indoor | Indoor fixed wiring | Industrial and power plants |
BS 5467 stands out for BASEC approval, UV resistance, and flame-retardant PVC sheath, making it ideal for tropical climates like Indonesia.
Frequently Asked Questions (FAQ) About BS 5467 Cable
What Is the Voltage Rating of BS 5467?
The standard rating is 0.6/1kV, suitable for low-voltage distribution networks in residential, commercial, and industrial environments.
Can BS 5467 Be Used Outdoors?
Yes, its UV-resistant PVC sheath allows safe outdoor installation under sunlight and tropical conditions.
Is BS 5467 Flame Retardant?
Yes, it complies with IEC/EN 60332-1-2, preventing fire propagation along the cable.
How Many Cores Are Available?
Available cores range from 2 to 37, with color-coded identification for easy installation:
2-core: Brown, Blue
3-core: Brown, Black, Grey (or optional Green/Yellow, Blue, Brown)
4-core: Brown, Black, Blue, Grey
5-core: Green/Yellow, Brown, Blue, Black, Grey
7-core and above: White with black numbering
What Is the Maximum Conductor Size?
Up to 400 mm² copper, suitable for heavy industrial and high-load applications.
How Does BS 5467 Perform in Indonesia’s Tropical Climate?
Thanks to UV resistance, flame retardancy, and PVC sheath, BS 5467 maintains long-term reliability in heat, humidity, and outdoor sunlight exposure.
Can BS 5467 Be Used in Underground Ducting?
Yes, SWA provides mechanical protection, and its robust construction ensures safe underground installation, even in areas with soil movement or vehicular traffic.
Why Choose BS 5467 for Industrial and Infrastructure Projects?
Durability: Long lifespan under extreme mechanical and environmental stresses.
Safety: Flame-retardant, UV-resistant, and BASEC approved.
Versatility: Suitable for indoor, outdoor, and underground installations.
Performance: High current-carrying capacity, low voltage drop, stable insulation.
Compliance: Meets BS 5467, IEC/EN 60502-1, IEC/EN 60228, and Indonesian electrical regulations.
BS 5467 Copper Conductor Multi-Core SWA PVC Cable is a premium choice for power distribution in underground, outdoor, and indoor networks, particularly in demanding environments like Indonesia. Its combination of mechanical strength, flame retardancy, UV resistance, and BASEC approval ensures safe, reliable, and long-lasting performance.
For engineers, contractors, and facility managers looking for dependable low-voltage solutions, BS 5467 offers a perfect balance of safety, efficiency, and durability.
Contact a certified supplier or electrical engineer today to specify BS 5467 for your next industrial, infrastructure, or urban power network project. Ensure your installation meets international standards while delivering long-term reliability.
