AS/NZS 5000.1 XLPE/SWA/PVC Armoured Power Cable 0.6/1kV for Industrial, Underground & Building Installations 3 & 4 Core + Earth
Cable Name | AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable 0.6/1kV |
Application | Armoured power cables with reduced earth for mains, sub-mains, and sub-circuits. Suitable for conduit, direct burial, or underground ducts in buildings and industrial plants where mechanical damage is minimal. |
Voltage Rating (Uo/U) | 0.6/1 kV |
Maximum Operating Temperature | +90°C |
Minimum Bending Radius | 8 × overall diameter |
Standards | AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125 |
Sheath Colour | Orange |
Construction
Conductor | Plain annealed copper |
Insulation | XLPE X-90 (Cross-linked polyethylene) |
Bedding | PVC 5V-90 (Polyvinyl Chloride) |
Armour | SWA (Galvanised Steel Wire Armour) |
Outer Sheath | PVC 5V-90 (Polyvinyl Chloride) |
Core Identification | 3C+E: Red, White, Blue, Green/Yellow4C+E: Red, White, Blue, Black, Green/Yellow |
Electrical Characteristics
Nominal Cross-Section (mm²) | Current Ratings (A) In Air | Buried Direct | Buried In Ducts | Maximum DC Resistance @20°C (Ω/km) | Maximum AC Resistance @90°C (Ω/km) | Reactance (Ω/km) | 3-Phase Voltage Drop @90°C (mV/A) |
|---|---|---|---|---|---|---|---|
16 | 83 | 110 | 83 | 1.15 | 1.47 | 0.0805 | 2.55 |
25 | 110 | 145 | 110 | 0.727 | 0.927 | 0.0808 | 1.61 |
35 | 135 | 170 | 135 | 0.524 | 0.669 | 0.0786 | 1.17 |
50 | 170 | 205 | 160 | 0.387 | 0.494 | 0.0751 | 0.868 |
70 | 215 | 250 | 200 | 0.268 | 0.343 | 0.0741 | 0.609 |
95 | 265 | 300 | 240 | 0.193 | 0.248 | 0.0725 | 0.450 |
120 | 305 | 345 | 275 | 0.153 | 0.197 | 0.0713 | 0.366 |
150 | 350 | 385 | 310 | 0.124 | 0.160 | 0.0718 | 0.307 |
185 | 405 | 435 | 355 | 0.0991 | 0.129 | 0.0720 | 0.259 |
240 | 480 | 500 | 420 | 0.0754 | 0.0998 | 0.0709 | 0.216 |

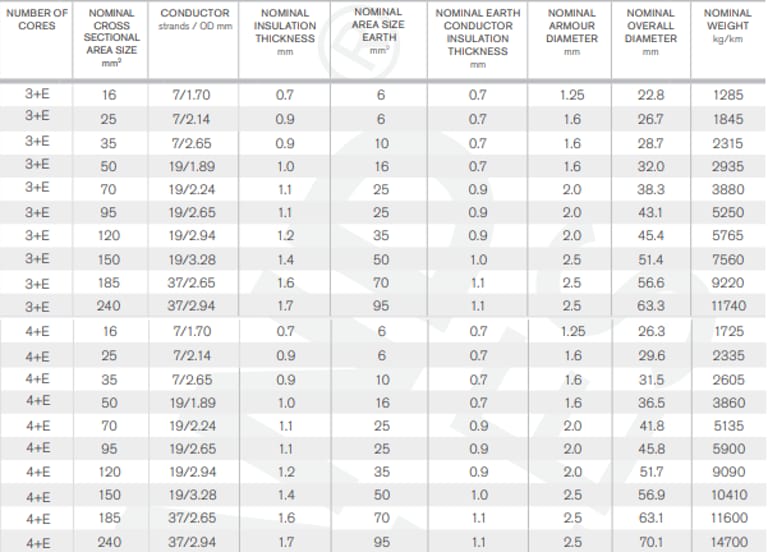

DIMENSIONS
When it comes to powering industrial plants, commercial buildings, and underground installations, selecting the right armoured cable is crucial. One of the most trusted solutions in Indonesia and across Southeast Asia is the AS/NZS 5000.1 XLPE/SWA/PVC armoured cable 0.6/1kV. But what makes this cable stand out? How does it perform in demanding environments? And why should engineers, contractors, and facility managers consider it over other power cables?
What is the AS/NZS 5000.1 Armoured Cable?
The AS/NZS 5000.1 standard defines low-voltage power cables for Australia and New Zealand. These cables are widely adopted in Indonesia due to their robust construction, high electrical performance, and compliance with international safety standards. Specifically, the XLPE/SWA/PVC + Earth armoured cable is designed for:
Industrial plants
Building installations
Underground conduits and ducting
Direct burial where mechanical protection is needed
The cable is suitable for 0.6/1kV applications, making it ideal for mains, sub-mains, and sub-circuits where reliability and safety are critical.
How Does the AS/NZS 5000.1 Cable Compare to Other Industrial Armoured Cables?
Engineers often compare this cable with other low-voltage solutions such as N2XBY, N2XBH, or standard PVC/SWA cables. Here is a simplified comparison:
Feature | AS/NZS 5000.1 XLPE/SWA/PVC | Standard PVC/SWA Cable | N2XBY Cable |
|---|---|---|---|
Max Operating Temp | +90°C | +70°C | +90°C |
Conductor Material | Copper | Copper | Copper |
Insulation | XLPE | PVC | PVC |
Armour | SWA | SWA | SWA |
Suitable for Underground | Yes | Yes | Yes |
Suitable for Industrial & Building | Yes | Limited | Yes |
Voltage Rating | 0.6/1kV | 0.6/1kV | 0.6/1kV |
Insight: XLPE insulation in AS/NZS 5000.1 offers better thermal and dielectric performance compared to standard PVC cables, making it more reliable for high-demand industrial applications.
Where Can AS/NZS 5000.1 Armoured Cables Be Installed?
The versatility of AS/NZS 5000.1 cables allows them to be used in multiple environments:
Industrial Plants: Factories, processing plants, and heavy machinery installations where thermal and mechanical stresses are high.
Commercial Buildings: Mains and sub-mains in office complexes, hotels, hospitals, and data centers.
Underground Installations: Buried directly or within ducting systems in tunnels, subways, and utility conduits.
Building Wiring: Power distribution for high-rise and low-rise buildings, where mechanical protection is required but not extreme.
Case Study – Indonesia: In Jakarta’s industrial zone, a 120mm² AS/NZS 5000.1 3-core + earth cable was used to supply power to a large manufacturing facility. The cable’s SWA armour protected it from accidental excavation damage while its XLPE insulation allowed safe operation in high-temperature zones near machinery. Over two years of continuous operation, the facility reported zero cable faults, demonstrating durability and reliability.
What Are the Common Questions About AS/NZS 5000.1 Armoured Cables?
Can I Use AS/NZS 5000.1 Cables in Wet or Underground Conditions?
Yes. These cables are suitable for direct burial in the ground and installation in underground ducts. However, proper bedding and backfilling are recommended to prevent mechanical damage.
How Do I Choose Between 3-Core + Earth and 4-Core + Earth?
3-Core + Earth: Typically used for three-phase systems without neutral-heavy loads.
4-Core + Earth: Recommended when neutral load balancing is critical or when single-phase supply is needed alongside a three-phase system.
What is the Minimum Bending Radius for Installation?
The minimum bending radius is 8× overall diameter, which ensures that the cable’s insulation and armour are not compromised during installation.
How Does AS/NZS 5000.1 Cable Handle Short-Circuit Conditions?
The cable is designed to withstand short-circuit temperatures up to 250°C for short durations, depending on cross-sectional area, which protects both the cable and connected equipment.
Can These Cables Be Used Indoors and Outdoors?
Yes. The PVC 5V-90 outer sheath provides environmental protection against moisture, UV, and chemical exposure, allowing indoor and outdoor installations.
How Do I Compare Current Ratings for Different Cable Sizes?
Refer to the electrical characteristics table. For instance, a 50mm² cable buried directly can handle up to 205A, while a 150mm² cable can handle 385A, ensuring adequate sizing for industrial loads.
Why Choose AS/NZS 5000.1 Armoured Cables Over Other Solutions?
High Reliability: XLPE insulation maintains integrity in high-temperature and heavy-duty conditions.
Mechanical Protection: SWA armour protects against accidental damage.
Versatile Applications: Suitable for industrial plants, commercial buildings, and underground installations.
Compliance with Standards: Adheres to AS/NZS 5000.1, 3008, and 1125, ensuring international quality assurance.
Proven Track Record: Widely used in Southeast Asia, including real installations in Indonesia with excellent durability.
For engineers, contractors, and facility managers seeking robust, reliable, and compliant power distribution solutions, the AS/NZS 5000.1 XLPE/SWA/PVC 0.6/1kV armoured cable is a proven choice. Contact a certified distributor in Indonesia today to get technical support, quotations, and installation guidance for your next project. Ensure safety, efficiency, and longevity in your power network with the right armoured cable.
