2491X / H05V-K / H07V-K Flexible PVC Control & Instrumentation Cable BASEC Approved, EN 50525-2-31, Flame Retardant, UV Resistant
Application | PVC panel wiring for use in switch control, relay, and instrumentation panels of power switchgear. Suitable for internal connectors in rectifier equipment, motor starters, and controllers. |
Voltage Rating (Uo/U) | H05V-K: 300/500V |
Temperature Rating | Fixed: -30°C to +70°C |
Minimum Bending Radius | Fixed: 6 × overall diameter |
Construction | Conductor: Class 5 flexible copper conductor |
Third-Party Accreditation | BASEC approved; tested and certified by BASEC, The British Approvals Service for Cables |
Standards | EN 50525-2-31, EN 60228 |
DIMENSIONS

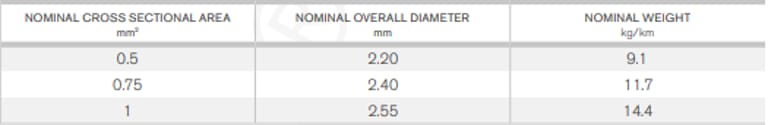

H05V-K

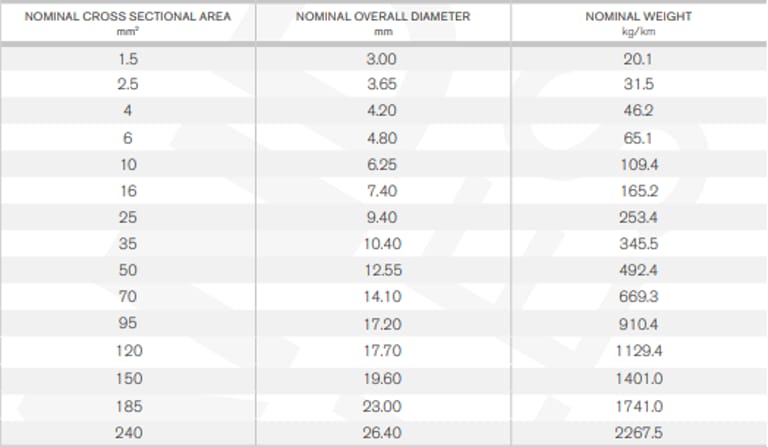

H07V-K
ELECTRICAL CHARACTERISTICS
In industrial, commercial, and residential applications, selecting the right control and instrumentation cable is crucial for safety, reliability, and performance. Among the widely recognized models, 2491X, H05V-K, and H07V-K flexible PVC cables stand out for their versatility, flame retardancy, and UV resistance. But what exactly are these cables, and how do they compare?
What Is the 2491X / H05V-K / H07V-K Cable?
The 2491X series, including H05V-K and H07V-K, are flexible PVC control and instrumentation cables designed for panel wiring, switchgear, relays, and internal connectors in electrical equipment. They are BASEC approved and conform to EN 50525-2-31 and EN 60228 standards, ensuring high quality and safety compliance.
Key Features:
Voltage Rating:
H05V-K: 300/500V
H07V-K: 450/750V
Temperature Rating:
Fixed: -30°C to +70°C
Flexed: -5°C to +70°C
Flame Retardant: IEC/EN 60332-1-2
UV Resistant: Suitable for outdoor exposure
Accreditation: BASEC Approved
Where Are 2491X / H05V-K / H07V-K Cables Used?
These flexible PVC cables are ideal for panel wiring, motor starters, controllers, and internal equipment connections.
Typical Applications:
Switchgear and Relay Panels
Rectifier Equipment
Motor Starters and Controllers
Instrumentation Panels
Indoor and Outdoor Installations
Areas with UV Exposure
Situations Requiring Flame Retardancy
Case: Indonesia
In Jakarta's industrial zones, H07V-K cables have been widely installed in high-rise commercial buildings for energy distribution and control panels, while H05V-K is commonly used in small motor controllers and automation panels. These installations benefit from flexibility, UV resistance, and BASEC approval, ensuring long-term reliability in tropical climates.
How Do H05V-K and H07V-K Compare?
While both cables belong to the 2491X series, they are suited for different voltage ranges and mechanical demands.
Feature | H05V-K | H07V-K |
|---|---|---|
Voltage Rating | 300/500V | 450/750V |
Cross Section Range | 0.5–1 mm² | 1.5–70 mm² |
Overall Diameter | 2.2–2.55 mm | 3.0–14.1 mm |
Weight | 9.1–14.4 kg/km | 20.1–669.3 kg/km |
Typical Application | Small panels, low-current circuits | Medium to high-current circuits, industrial panels |
Flexibility | High | Moderate |
Cost | Lower | Higher |
Key Takeaway: H05V-K is preferred for light-duty panel wiring, while H07V-K is ideal for heavier, higher-voltage applications.
Frequently Asked Questions (FAQ)
What Is the Difference Between 2491X, H05V-K, and H07V-K?
2491X is the series name encompassing both H05V-K and H07V-K.
H05V-K: Low voltage, flexible, small cross-sections (0.5–1 mm²).
H07V-K: Higher voltage, larger cross-sections (1.5–70 mm²), suitable for industrial panels.
Can These Cables Be Used Outdoors?
Yes, both H05V-K and H07V-K are UV resistant. For long-term outdoor exposure, additional protection such as conduits or shading is recommended.
Are 2491X Cables Flame Retardant?
Yes, they conform to IEC/EN 60332-1-2, ensuring flame retardancy in case of fire, which is essential for industrial and commercial safety.
How Flexible Are These Cables?
H05V-K: Highly flexible, ideal for small panels and tight spaces.
H07V-K: Moderately flexible, suitable for larger panels and higher currents.
What Are Typical Applications in Indonesia?
H05V-K: Small motor controllers, internal switchgear wiring, automation panels.
H07V-K: Medium-voltage panels in industrial buildings, power distribution boards, and motor control centers.
How Do I Choose Between H05V-K and H07V-K?
Consider voltage rating, cross-sectional area, current load, and mechanical requirements.
Use H05V-K for light-duty control wiring, H07V-K for heavier, higher-voltage industrial wiring.
Can These Cables Be Substituted with Other PVC Cables?
Yes, but ensure the replacement meets EN 50525-2-31, BASEC approval, and flame retardant & UV requirements.
Why Choose BASEC Approved 2491X Cables?
Third-party Certification: BASEC approval ensures the highest quality and safety standards.
Compliance with European Standards: EN 50525-2-31 and EN 60228.
Durability: PVC insulation resists flames, UV, oils, and mechanical stress.
Reliability in Tropical Climates: Proven in Indonesia’s industrial and commercial projects.
If you are designing or upgrading electrical panels, choosing BASEC approved 2491X / H05V-K / H07V-K cables ensures safety, durability, and compliance. Contact Eland Cables Indonesia today for technical consultation, bulk supply, or project-specific recommendations.
